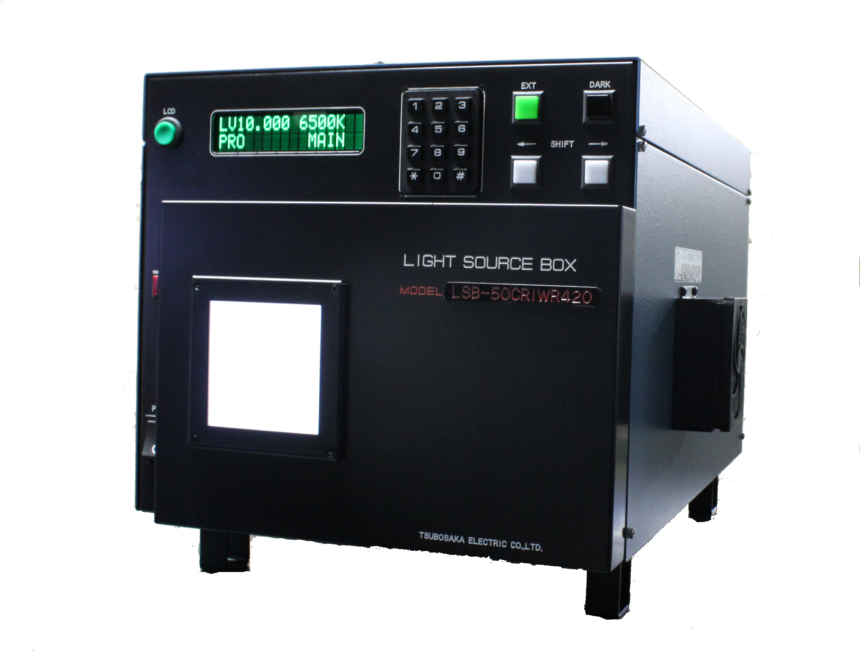

24EV Wide range light source box–LSB-50CRIWR420

  • Change an arbitrary luminance, a pitch and a memory
  • Switch color temperature/ Fine adjust color temperature
  • Select displayed unit/ Switch K value (only by external communication)
  • Luminance feedback function
  • Dark shutter mode (close shutter)
  • Error indication and alarm
  • ON/OFF of LCD display
  • External pulse signal input (CMOS)

Bookmark

Luminance [LV] -4.0 - 20.0
Luminance [cd/㎡] 0.0087-146729
Luminance surface (WxH) [mm] 50x50
Luminance unevenness [± %] 3.5
Correlated color temperature [K] 6500+/-500
Light source LED
Lighting method DC
function Can change; arbitrary brightness, pitch and memory
Switch color temperature/ Fine adjust color temperature
Select displayed unit/ Switch K value (only by external communication)
Brightness feedback function
Dark shutter mode (close shutter)
Error indication and alarm ON/OFF of LCD display
External pulse signal input (CMOS)
Display / Operation Operation of main part
External communication control
Communication I / F USB2.0
Power-supply voltage AC100-240V 50/60Hz
Power consumption [VA] Less than 400
Operating environment Temperature: 15-30 [℃]
Humidity: less than 80 [%] without dew condensation
Dimensions (WxHxD) [mm] 371x316x492
Weight [kg] 20
Extension Change color temperature
