Chart Collimator– AFC series

  • Chart Collimator for adjustment and inspection of digital camera and video camera
  • Use for the resolution evaluation of a zoom lens
  • Specifications can be changed for user’s lens from finite distance to infinite distance
  • Light source can be selected to Halogen or LED
  • Standard model is f=500, it can be customized with user’s camera
  •  Combining multiple devices makes it possible to inspect center+ peripheral angle of view

Bookmark

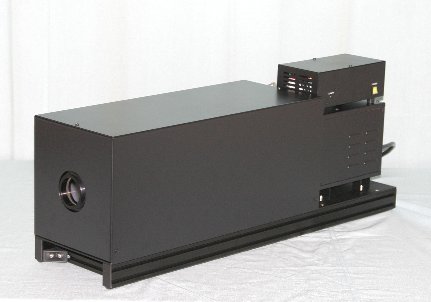

Model AFC-500
Luminance [cd/㎡] 300-900
Luminance surface (WxH) [mm] 150x120
Correlated color temperature [K] 6500+/-500
Light source LED *Can change to Halogen by the option
Collimator optical system Collimator lens φ50mm, f=500mm
Object to be inspected Camera lens and so on
Chart 90x120mm
Power-supply voltage AC100-240V, 50/60Hz
Power consumption [VA] 10
Dimensions (WxHxD) [mm] 200x260x750
Weight [kg] 11
Extension Focal position can change to finite position
Variable mechanism of focal position (Motorized chart part)
Change light source
All customs to fit chart size
