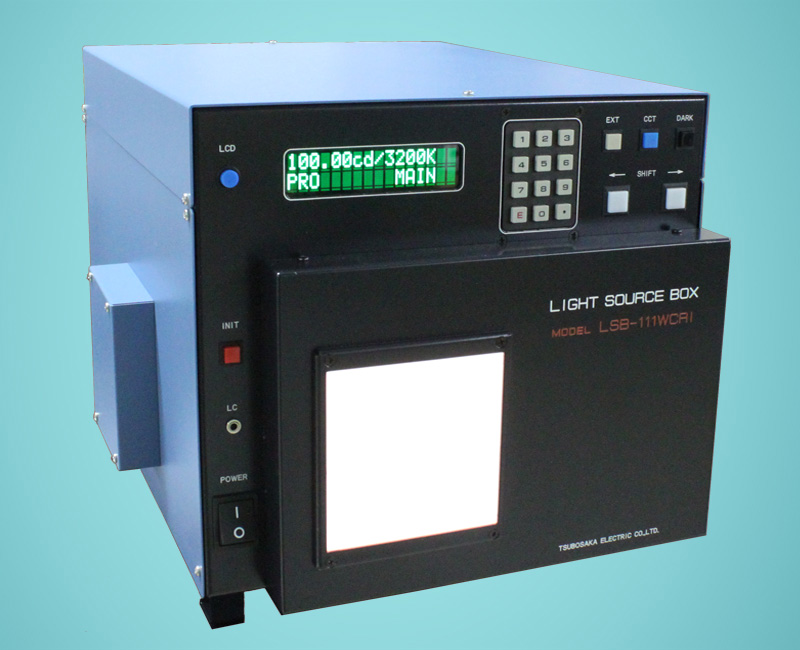

Ultra-high color rendering LED source box LSB-111WCRI

  • Adjustable luminance (voluntary adjustment, pitch adjustment and program adjustment)
  • Switching of color temperature / Fine tuning of color temperature
  • Selection of display unit/Switching of k- value (communication only)
  • Luminance feedback function
  • External communication control
  • Display monitor ON/OFF / Error display and alarm
  • Luminance calibration (manual)
  • (Luminance) Dark shutter function/ External pulse signal input
  • Automatic luminance calibration (Option: luminance meter LC-5 to be connected)


model LSB-111WCRI
Brightness range [LV] 0.0 - 16.0
Brightness range [cd/㎡] 0.28 - 18,000
Luminance surface (WxH) [mm] 100 x 100
Brightness unevenness [± %] 3
Correlated color temperature [K] Can be set to multiple correlated color temperatures from 2600K to 7000K
Example) 3-point setting
* Please consult us about color temperature
Light source LED
Lighting method DC lit
function Arbitrary luminance setting function
Registered luminance variable
Luminance feedback function
Auto calibration(LC-5 needed)
Display / Operation Main unit operation
External (serial) communication control
Communication I / F USB 2.0
Power-supply voltage AC100-240[V] 50/60[Hz]
Power consumption [VA] Less than 150
Operating environment Temperature : 15-30[℃]
Humidity : 80% or less, dew condensation none
Dimensions (WxHxD) [mm] 310 x 316 x 442.5
Weight [kg] 16.5
