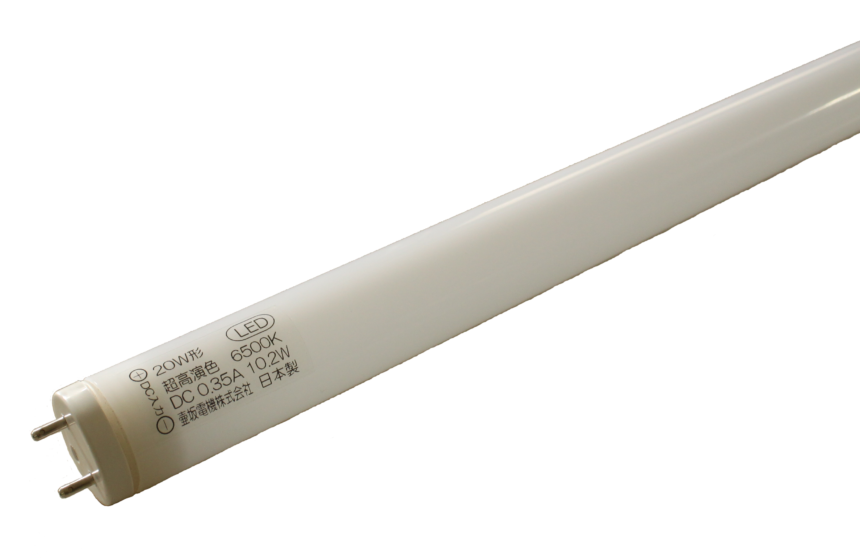

Ultra high color rendering Straight tube LED illumination–TSLS series

  • Color reproductivity is equivalent to the sunlight.
  • The most suitable spectral sensitivity for camera evaluations.
  • Enable to adjust illuminance or setting programs with dimmers.
  • Produced in Japanese domestic ISO certified factories
  • Enable to change NIR lamps (850nm, 940nm, 1050nm, 1300nm, 1550nm and so on)


Correlated color temperature [K] 2700, 3000, 5000, 6500
Light source LED
Lighting method DC
Total luminous flux [lm] Almost 1100 (Depending on an outer diameter or CCT)
Power-supply voltage AC100-240V 50/60Hz
Operating environment Temperature: 15-30[℃]
Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm] Type 20 length: 580mm diameter:25.5
Type 40 length: 1198mm diameter: 25.5mm
Type 50 length: 1498.5mm diameter: 25.5mm
Type 110 length: 2367mm diameter: 25.5mm
Weight [g] 140 (type 20)
Extension Dimmer control unit, Selector switch
Built-in power supply type
Change types of loaded LED (color temperature or spectral features)
