*(CIPA DC-011-2012 Standard)
Please turn on the subtitle while watching the video.

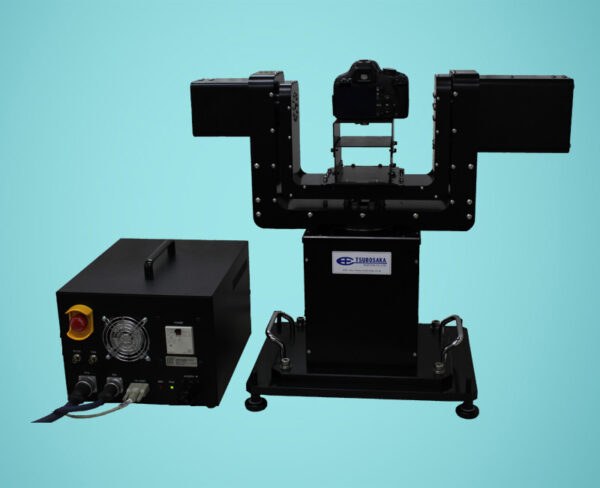

| Model | V400 |
|---|---|
| function | Sine wave vibration Free wave vibration Random vibration angle drive function |
| Display / Operation | Designated PC software control |
| Supported OS | Windows 7, 10 |
| Load capacity [kg] | 5.0 |
| Frequency [Hz] | 0.1-15.0 |
| Amplitude [deg] | ±0.01 - 5.00 |
| Communication I / F | RS-232C compliant |
| Power-supply voltage | Select from AC100V or AC240V, 50/60Hz |
| Dimensions (WxHxD) [mm] | Vibrating unit: 636 x 250 x251 Base plate: 400 x 300 x 15 (excluding the adjuster) Control unit: 276 x 400 x 207 (excluding connectors, switches and rubber foot) |
| Weight [kg] | Vibrating unit: 30 Base plate: 12.5 Control unit: 20 |
| Extension | Add the roll axes Add panning and tilting functions Camera mount Gyroscope sensor & Fixing jig USB serial communication converting kit |
