- Light source box for wide angle camera evaluations
- Semi-sphere shape, high uniformity light surface
- Equipped the jig for fixing a camera
- Customize the diameter of a semi-sphere diffuser

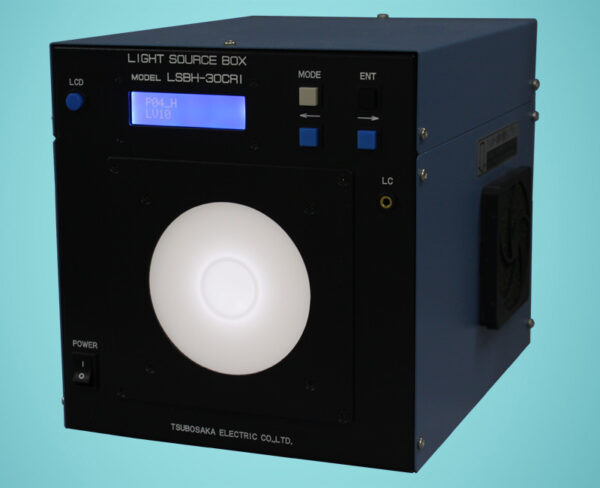

Sphere Diffuser Light Source Box– LSBH-30CRI
Model | LSBH-30CRI |
---|---|
Luminance [cd/㎡] | 0.35 - 2000 |
Luminance surface (WxH) [mm] | φ30 |
Correlated color temperature [K] | Select one type from the below 3200 ±150 5500 ±500 6500 ±500 |
Light source | LED |
Lighting method | PWM 100 [kHz] lighting |
Function | Change the preset luminance Luminance adjustment function Luminance feedback function External communication control Pulse lighting (external) Auto Cal (with LC-5S) |
Display / Operation | Operation of the main part External communication control (serial) |
Communication I / F | USB 2.0 compliant |
Power-supply voltage | AC100 - 240V 50/60Hz |
Power consumption [VA] | 50 |
Operating environment | Temperature: 20 - 30 [℃] ±2℃ Humidity: less than 80 [%] without dew condensation |
Dimensions (WxHxD) [mm] | 187 x 195 x 56 |
Weight [kg] | 5.5 |
Extension | Customization of the diameter of a semi-sphere diffuser DC lighting Setting luminance range Setting color temperature |
