【Description】
This LED lighting has spectral radiating energy with whole visible wavelength range.
Because it equipped with multiple wavelengths and high color rendering LED, it is able to emit lighting for arbitrary spectrum. It is possible to adjust spectral wavelength of radiating energy intensity and register program with dedicated PC software.
Please turn on the English subtitle while watching the video.

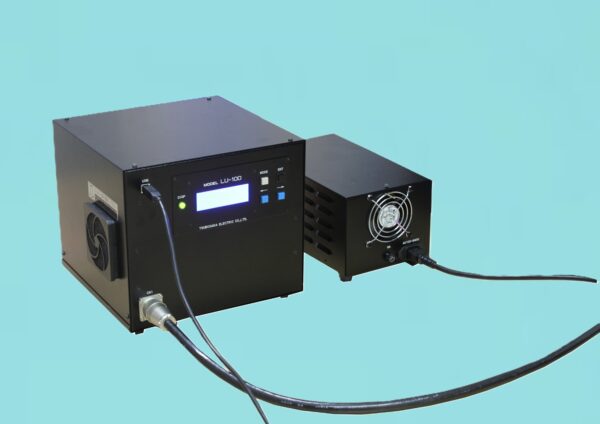

| Model | LU-100SCV-1 |
|---|---|
| Light source | LED 29 channels 25 wavelengths channels 4 white channels （2625ｋ、5000K、6500K、10000K） |
| Illuminance [lx] | D65： 24,000 lx Maximum.： 60,000 lx Minimum： 250 lx Maximum and minimum illuminance depend on light source spectrum For low illuminance use, the device can be combined with ND filter （OPTION） |
| Function | ・Changeable for spectral wavelength radiation energy ・Register for spectral wavelength radiation energy ・Load CSV file spectral data ・Serial communication I/F USB (RS communication） |
| Power-supply voltage | AC100 - 240V±10％、50/60Hz |
| Power consumption [VA] | Under 800VA |
| Operating environment | ［Temperature］10℃～40℃ ［Humidity］ under 80％, no condensation |
| Weight [kg] | [Light source] 4.5kg [Power supply] 2.4kg |
