Super Wide Range LED Equipped
・Reproduce any luminance
・High luminance uniformity over 95%
・Have Near InfraRed range energy
・Directly set arbitrary luminance

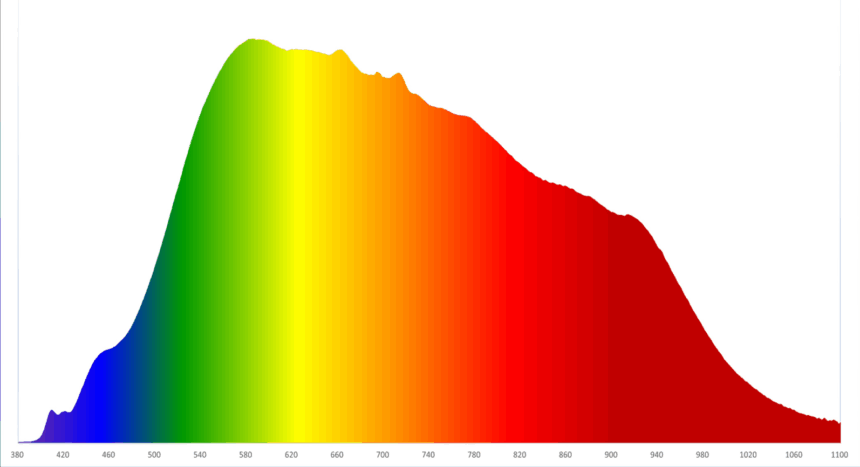

・Spectral-reproduction light source with wavelength up to 1100nm

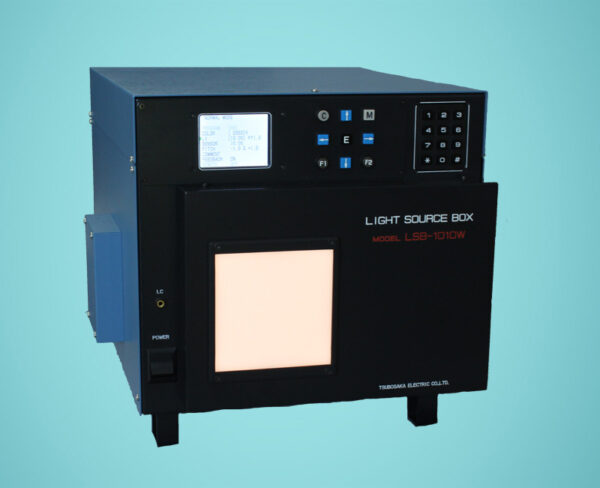

Super Wide Range LED Light Source Box LSB-1010SBW
| Model | LSB-1010SBW |
|---|---|
| Luminance [LV] | -1.0～16.5 |
| Luminance [cd/㎡] | 0.07～13000 |
| Luminance [rlx] | 0.22～40000 |
| Luminance surface (WxH) [mm] | 100 x 100 |
| Active luminance surface (WxH) [mm] | Φ100 |
| Correlated color temperature [K] | 3200K ※Deviate from blackbody radiation due to spectral priority |
| Light source | High color rendering LED (Ra=97) |
| Function | ・Luminance feedback function ・Luminance sampling display ・Switch luminance units ・Change K value ・Internal / external pulse lighting function ・Dark shutter ・LED OFF function ・LED adjustment function ・Turn ON/OFF of LCD backlight ・Lock function for operation buttons (Remote mode) ・Control with PC software ・Auto calibration function (Use separated sold luminance meter LC-5) |
| Communication I / F | USB2.0 Type-B UART with visual COM port |
| Power-supply voltage | AC100～240[V]、50/60[Hz] |
| Power consumption [VA] | Under 300 VA |
| Operating environment | Temperature：5～40[℃], Recommend: within20～30±2[℃] Humidity: Under 80[％] no condensation |
| Weight [kg] | About 17.5 |
