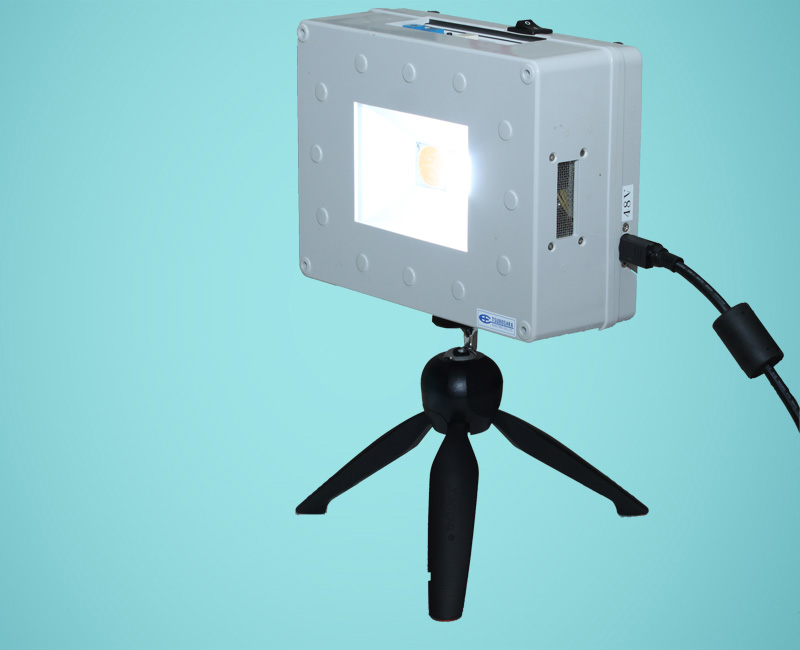

Small type Artificial Sunlight– SOL-300-02D27

Catalog Download

  • High color rendering LED (Ra=97)
  • Designated device for test charts ISO 16505 standard
  • Can adjust color temperatures
  • Maximum 2,400lx from 1m ahead

Budget-friendly model: SOL-100-09A27

Upper grade model, higher illuminance and larger light spot: SOL-1000-24A27

Spot light type: SOL-600-01T05

Bookmark

Model SOL-300-02D27
Correlated color temperature [K] 2800-6500
Light source LED
Lighting method DC
Total luminous flux [lm] Maximum 8500 (as long as irradiating both 2 types of LEDs)
Illuminance [lx] Maximum 2800 *as long as irradiating both 2 types of LEDs *from 1m ahead
Maximum 1400 *as long as irradiating 1 type of LED *from 1m ahead
*Illuminance can be changed with adjusting color temperatures
function Adjusting output of 2 types of LEDs
Illuminance adjust function
Color temperature adjust function
Display / Operation Operation unit of the main part
Power-supply voltage AC100-240V 50/60Hz
Power consumption [VA] 180
Operating environment Temperature: 10-40[℃]
Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm] 148x161x85
Weight [g] Main part: 850
AC adapter: 900
Extension Equipped a microcomputer to storage & invoke output values of LED
External communication control
Color temperature settings
Pulse lighting (internal and external)
