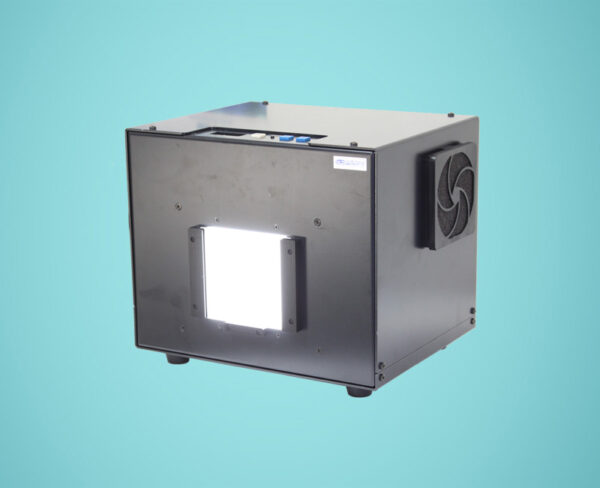

Visible + NIR Broad Spectrum Illumination– SOL-80VNIR

Visible and NIR 80mm surface light source

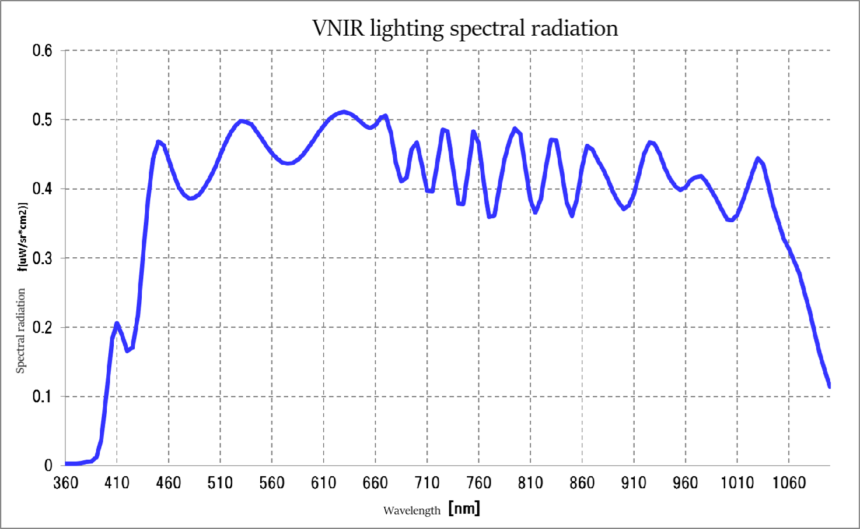

Visible and NIR broad spectral distribution (visible band ~ NIR 1070nm)
Intensity of radiant energy by each spectral wavelength is adjusted or is programmed with an attached PC software

Other Broad Spectrum Infrared Illumination: SOL-900-06IR85/94

Model	SOL-80VNIR
Luminance [cd/㎡]	300
Luminance surface (WxH) [mm]	80 x 80
Light source	LED
Lighting method	DC lighting
Illuminance [lx]	500-700 (depends on a diffuser )
function	Diffusing sheet on the luminance surface, Diffusing plate, 80x80mm filter insert mechanism Radiant energy of spectral wavelength from visible to NIR 690-1050nm is changeable Radiant energy of spectral wavelength from visible to NIR 690-1050nm can be programmed
Communication I / F	USB2.0
Power consumption [VA]	Less than 130
Operating environment	Temperature: 15-30[℃] Humidity: less than 80% without dew condensation
Dimensions (WxHxD) [mm]	Light source unit: 250 x 217 x 200 Power supply unit: 230 x 136 x 151
Weight [kg]	Light source unit: 4 Power supply unit: 2
Accessories	Connection cable: 2.5 [m]
