- Compliant with ISO 16505
- Jig of mock headlight with using high color rendering white LED
- Supposition of exist of headlight (diameter 0.09m) ahead from 250m by 1.3m
- Set 2.5m distance, diminution rate 2.5m/250m = 0.010 times
- Maximum luminance more than 500,000 [cd/m^2]

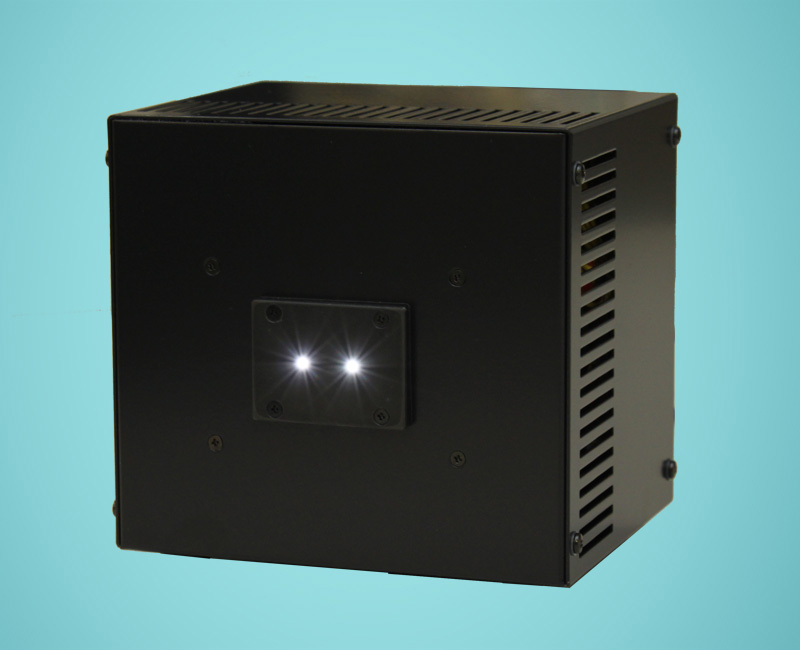

Reproduce Headlight Light– JIG-HLS-106
| Model | JIG-HLS-106 |
|---|---|
| Luminance [cd/㎡] | Common-use: 200,000-300,000 Maximum: more than 500,000 |
| Correlated color temperature [K] | 6500+/-500 *Option: 2850+/-300, 5100+/-500 |
| Light source | LED |
| Lighting method | DC |
| function | Power adjust analog volume (Both of two lights, only left /right ) |
| Power-supply voltage | AC adapter Ac100-240V, 50/60Hz |
| Power consumption [VA] | 65 |
| Dimensions (WxHxD) [mm] | 121x116x99 (except protrusions) |
| Weight [g] | Light source: 550 AC adapter: 500 |
| Extension | Change of suppose distance |
