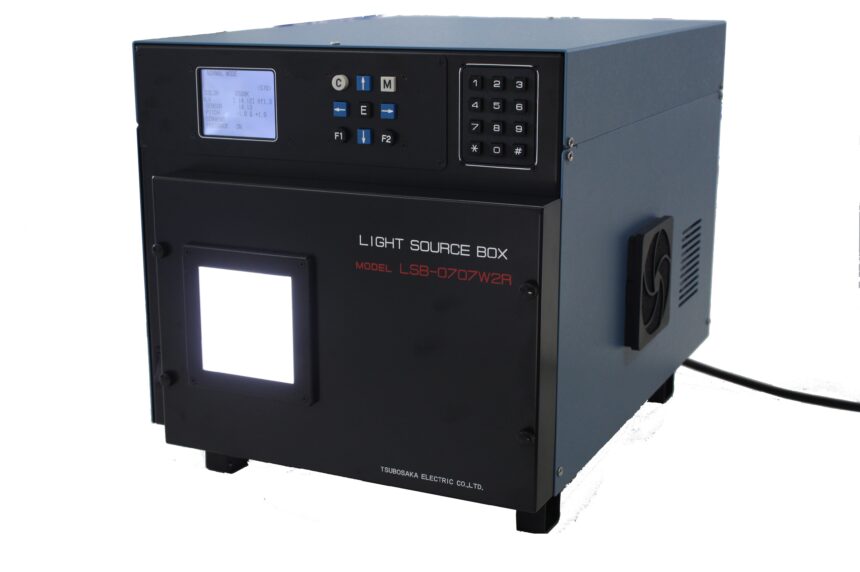

Over 24EV Wide Luminance Range Light Box–LSB-0707CRIWR420

  • Wide range of luminance 24EV; -4.0~20.0 [LV]
  • Changeable an arbitrary luminance, a pitch and a memory
  • Input an arbitrary color temperature with the key pad.
  • Switch color temperatures/ Fine adjust color temperatures
  • Select displayed units/ Switch K value (only by external communication)
  • Luminance feedback function for the brightness stability
  • Dark shutter mode (close shutter)
  • Error indication and alarm
  • ON/OFF LCD display backlight
  • External communication control IF=USB (serial communication)
  • External pulse signal input (CMOS)
  • Auto calibration for luminance (separately sold: LC-5 connected)

Arbitrary Select Color Temperatures Light Source Box: LSB-1010WCRI

For HDR evaluations,

Dynamic Range evaluation light source box: LSB-0303HDR-2415







Bookmark

Model LSB-0707CRIWR420
Luminance [LV] -4.0 - 20.0
Luminance [cd/㎡] 0.0087-146729
Luminance surface (WxH) [mm] 50x50
Luminance unevenness [± %] 3.5
Correlated color temperature [K] 6500+/-500
Light source LED
Lighting method DC
function Can change; arbitrary luminance, pitch and memory
Switch color temperatures/ Fine adjust color temperatures
Select displayed units/ Switch K value (only by external communication)
Luminance feedback function
Dark shutter mode (close shutter)
Error indication and alarm
ON/OFF LCD display backlight
External pulse signal input (CMOS)
Display / Operation Operation of main part
External communication control
Communication I / F USB2.0
Power-supply voltage AC100-240V 50/60Hz
Power consumption [VA] Less than 400
Operating environment Temperature: 15-30 [℃]
Humidity: less than 80 [%] without dew condensation
Dimensions (WxHxD) [mm] 344.5x320.6x441.8
Weight [kg] 17
Extension Change correlated color temperatures
