- Maximum 146,729cd/m^2 luminance surface light source box
- High color rendering LED more than Ra-95
- Easy operation by the touch display
- Luminance feedback function

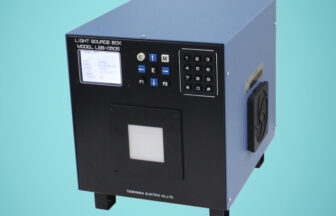

Other High Luminance Light Source Boxes: LSB-0707CRIWR420

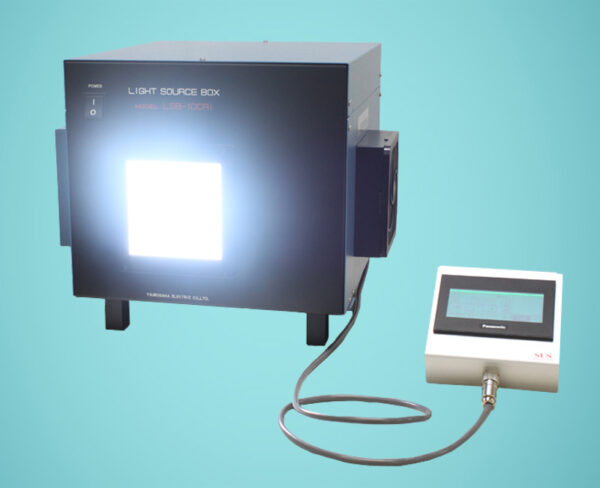

High Luminance Light Source Box–LSB-10CRI-20
| Model | LSB-10CRI-20 |
|---|---|
| Luminance [LV] | 13.0-20.0 |
| Luminance [cd/㎡] | 1146.3-146729 |
| Luminance surface (WxH) [mm] | 100x100 |
| Luminance unevenness [± %] | 5 |
| Correlated color temperature [K] | 6500+/-500 |
| Light source | LED |
| function | Arbitrary luminance setting function Change entered luminance Auto calibration (connect to LC-5) |
| Display / Operation | Touch display External communication control (serial communication) |
| Communication I / F | USB2.0 |
| Power-supply voltage | AC100-240V 50/60Hz |
| Power consumption [VA] | Less than 450 |
| Operating environment | Temperature: 15-30 [℃] Humidity: less than 80 [%] without dew condensation |
| Dimensions (WxHxD) [mm] | 300x306x320 |
| Weight [kg] | 16 |
| Extension | Wide luminance range (LV8-LV20) |
