- A3 paper size IR LED surface light source
- Infrared intensity is always stable with feedback control
- High uniformity of infrared intensity in the surface of light source

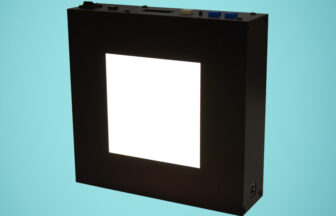

A4 paper size Smaller Infrared Light Source Box: VLB-3020FBW-IR8594

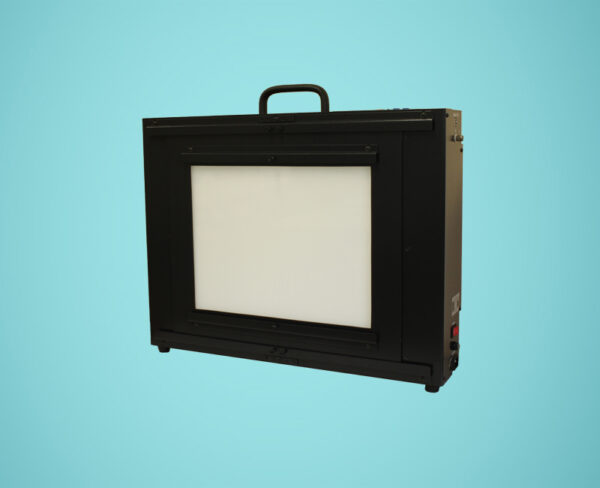

Infrared Surface Light Source Box– VLB-4230FB-IR
| Model | VLB-4230FB-IR |
|---|---|
| Intensity range | 10-300 [μW/㎠] |
| Intensity surface (WxH) [mm] | 420x300 |
| Intensity unevenness [± %] | 5 |
| Light source | LED |
| Lighting method | DC |
| Wavelength [nm] | 850 940 1050 1300 Choose from these 4 wavelengths or consult us |
| Intensity [μW/㎠] | 50-200 |
| Function | Change entered infrared intensity Adjust infrared intensity Infrared intensity feedback function |
| Display / Operation | Operation unit of the main part PC software control External communication control (serial communication) |
| Communication I / F | USB 2.0 |
| Power-supply voltage | AC100-240V 50/60Hz |
| Power consumption [VA] | Less than 200 |
| Operating environment | Temperature: 15-30 [℃] Humidity: less than 80 [%] without dew condensation |
| Dimension (WxHxD) [mm] | 565x496x138 |
| Weight [kg] | 11 |
| Accessories | AC, Certificate of product quality inspection |
| Extension function | Change luminance surface size Chart holder Setting of infrared wavelength |
