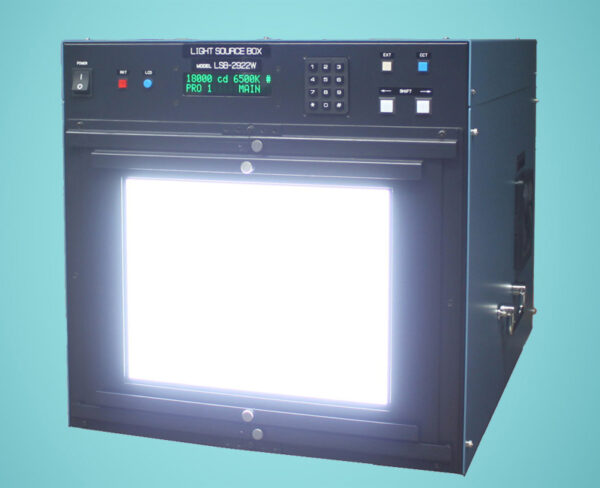

Large Surface & High Luminance–LSB-2922WCRI

More than 100,000lx high power– suitable for broadcast camera evaluations

Multiple color temperature (maximum 6 points); choose from 2600K – 6500K
Reproduce high luminance in spite of high color temperature; ex) 36,000cd/m^2 at 6500K
Using the keypad to set an arbitrary luminance value
Luminance is always be reproduced stably with luminance feedback function
Uniformity of luminance is remarkably high level even though luminance surface is wide.

Model	LSB-2922WCRI
Luminance [cd/㎡]	500-36,000
Luminance surface (WxH) [mm]	290x220
Luminance unevenness [± %]	3.0
Correlated color temperature [K]	2600-6500 (maximum 6 points)
Light source	LED
Lighting method	DC
function	Arbitrary luminance setting Switching entered color temperature Luminance feedback function External pulse driven Auto calibration (connecting LC-5)
Display / Operation	Operation unit of the main part External communication control (serial communication)
Communication I / F	USB2.0
Power-supply voltage	AC100-240V 50/60Hz
Power consumption [VA]	Less than 1000
Operating environment	Temperature: 20-30[℃] Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm]	508x462x638
Weight [kg]	30
Extension	Chart holder (aspect ratio 4:3, 16:9)
