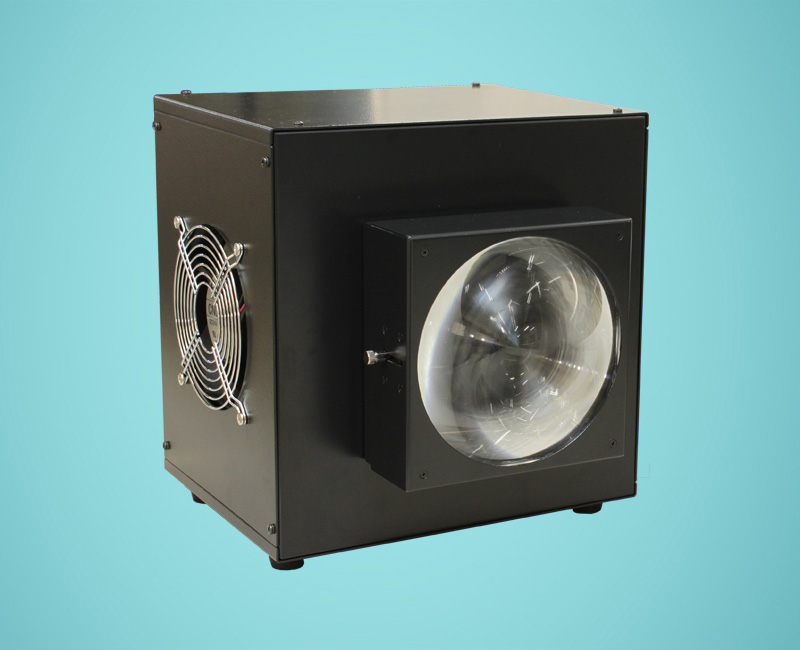

High Illuminance 100,000lx Spot Light–SOL-600-01F05

Catalog Download

  • High illuminance 170,000lx at 1m ahead.
  • It is designed to output 100,000lx for reproducing  the high intensity irradiation environment.
  • Combining NIR (separately sold) and visible distributions leads to reproduce visible + NIR band.
  • Adjust the focus of lens to change an irradiating angle and range.
  • The external control with the serial communication.

Other Spot Light Type: SOL-600-01T05

Broad Spectrum Type: SOL-80VNIR



Bookmark

Model SOL-600-01F05
Correlated color temperature [K] 5500+/-500
Total luminous flux [lm] 20,000
Illuminance [lx] 5,000-170,000
function Changeable programmed luminance
Luminance adjustment function
Display / Operation Light source unit
External communication control (serial communication)
Communication I / F USB2.0
Power-supply voltage AC100-240V, 50/60Hz
Operating environment Temperature: 10-40degree (50-104 F degree)
Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm] Light source unit: 260 x 275 x 255
Power supply unit : 180 x 120 x 250
