「2 Independent Surfaces in 1 Light Source」

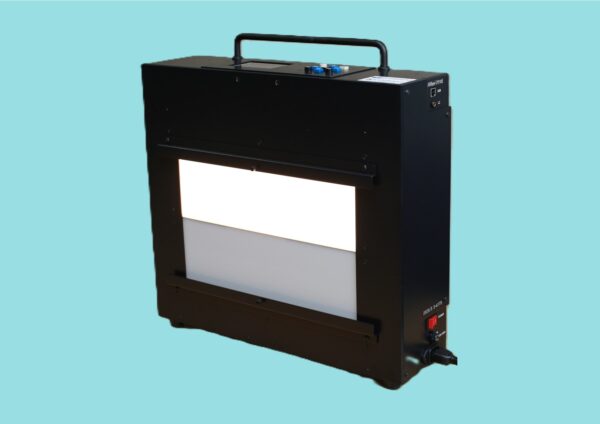

The 2 Independent Surfaces Light Source integrates both high and low luminance capabilities within a single device, enabling flexible operation across an exceptionally wide dynamic range, making it ideal for camera dynamic range evaluation. It achieves a luminance difference of up to 90 dB, supporting precise and reliable assessment under extreme contrast conditions.
The high-luminance side provides an adjustable range from 2,000 to 11,000㏅/㎡ , while the low-luminance side covers a range from 0.3 to 2.0㏅/㎡, allowing accurate control for applications requiring both intense and ultra-low light levels.
High and low luminance in one device
Achieved luminance difference of up to 90dB
JEITA TTR4605C correspondence
Please turn on the English subtitle while watching the video.
