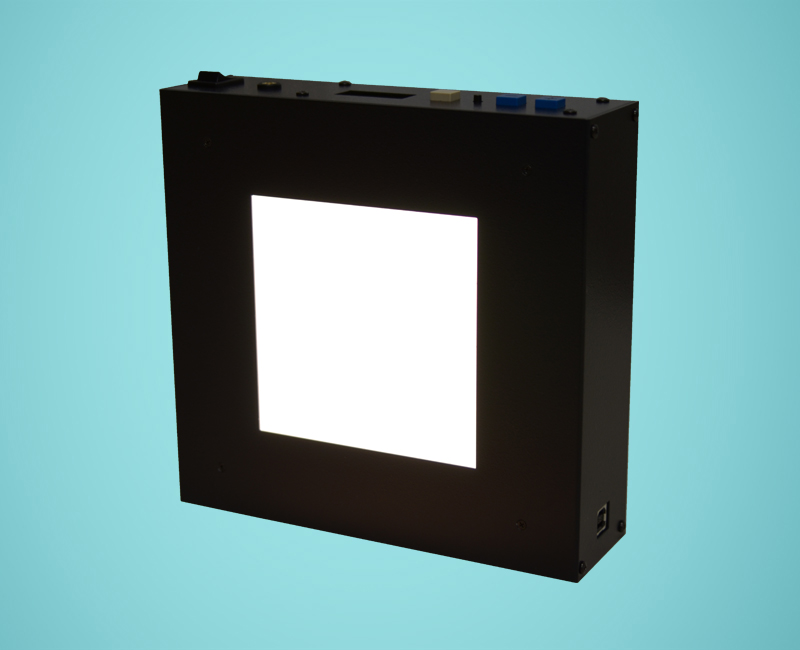

Low Brightness Light Source Box– VLB-70LB-CRI

  • Most suitable for high sensitive camera evaluation
  • Lowest brightness can be changed; Minimum luminance 0.0005cd/㎡
  • High uniformity of luminance

Bookmark

Model VLB-70LB-CRI
Luminance [LV] 0-2.84
Luminance [cd/㎡] 0.14-1.00
Luminance surface (WxH) [mm] 70 x 70
Correlated color temperature [K] Select one color temperature from the below
3200 ±150
5500 ±500
6500 ±500
Light source LED
Lighting method DC
function Select function of the input luminance
Luminance adjusting function
Display / Operation Main device
External communication control (serial)
Communication I / F USB2.0 compliant
Power-supply voltage AC100 - 240V 50/60Hz
Power consumption [VA] 4
Operating environment Temperature: 20-30[℃] within ±2℃
Humidity: Less than 80% without dew condensation
Dimensions (WxHxD) [mm] 156 x 156 x 146
Weight [kg] 600
Extension Change the lowest luminance
Change the luminance surface size
