High-Grade Light Source Box– LSB-1010WCRI

Catalog Download

We strongly recommend this model to people who need accurate, sophisticated evaluations or who want to develop high quality products in short term.

Additional functions, for instance pulsed lighting, make the device used in various inspection environments.
We are skillful at customization, so please consult us at first.
Custom examples: “Extend luminance range” “Produce a special diffuser” “Change the body color” “Produce a designated PC control software”
  • Luminance range 190,000 times (105dB); 17.5EV
  • High uniformity of luminance
  • Luminance feedback function
  • Input an arbitrary luminance with the keypad
  • Input an arbitrary color temperature by CT-MODE (option)

Middle grade model: LSB-1010FB series

Please turn on the subtitle while watching the video.

Bookmark

Model LSB-1010WCRI
Luminance [LV] [Warranty coverage] -1.0-16.5
[Input range] -1.0-17.0
Luminance [cd/㎡] [Warranty coverage] 0.1-13000
[Input range] 0.1-19000
Luminance surface (WxH) [mm] 100x100
Active luminance surface (WxH) [mm] φ100
Luminance unevenness [± %] 2.5

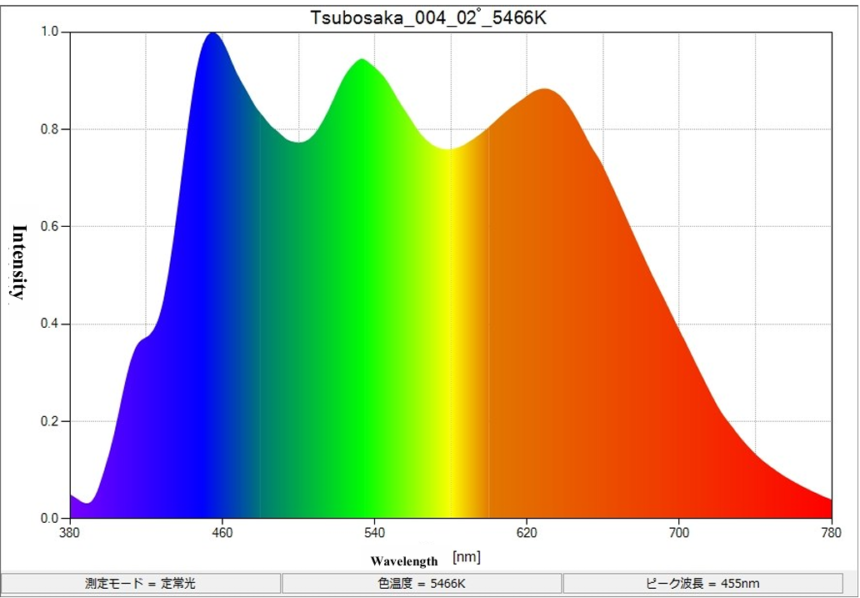

Correlated color temperature [K] Select 2 color temperatures from the below
2850+/-100
3200+/-100
4870+/-200
5500+/-200
6500+/-300
Light source LED
Lighting method DC
function Type in an arbitrary luminance with the keypad
Switch entered luminance
Luminance feedback function Gen.3 (including nullified)
Switch the display units of luminance
Sampling display of luminance
Auto calibration
LED OFF function
DARK shutter mechanism
Turn ON/OFF backlight of the display
Pulse lighting function
Error indication
External communication function
Communication I / F Connector: USB2.0 Type-B
UART with visual COM port using USB port
Power-supply voltage AC100-240V 50/60Hz
Power consumption [VA] 150
Operating environment Temperature: 20-30[℃]
Humidity: less than 80[%] without dew condensation 　
Dimensions (WxHxD) [mm] 344.5 x 320.6 x 441.8
Weight [kg] 16.7
