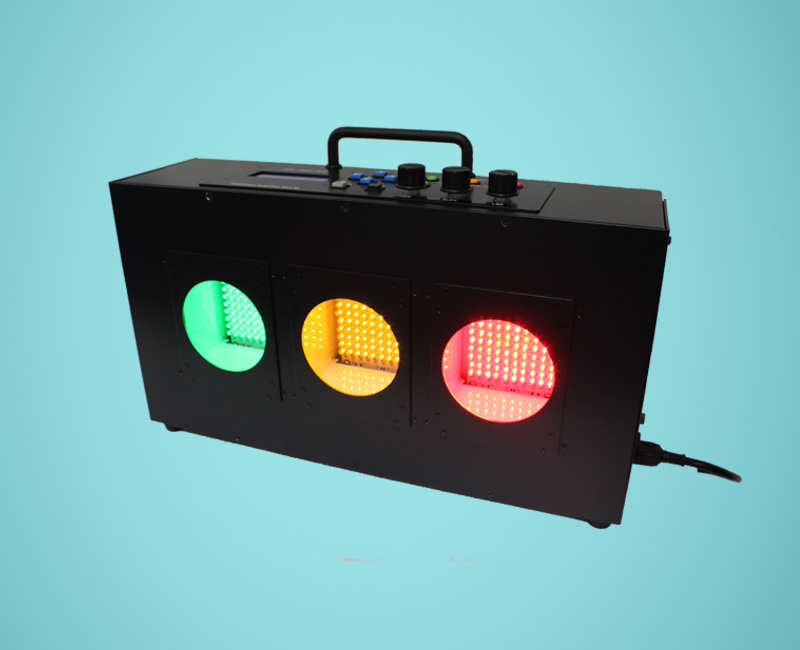

Traffic Signal Type Flicker Illumination– FCV-1000-3C2

Catalog Download

  • Traffic signal type of Flicker reproduce light source
  • Three types of frequencies and duty can be set individually
  • Illumination can be turned on by an external operation with a pulse generator
  • Irradiating environment is reproduced with electric powered flickers
  • This device is perfectly suitable for an inspection of dashboard camera,  security camera etc.

Light source box type of Flicker reproduce illumination: FCV-10CRI

Colorful light panel type of Flicker reproduce illumination: DMLP320

This model “FCV-1000-3C2” and dynamic range evaluation light source is appropriate especially for evaluations of CMOS sensor.

Bookmark

Model FCV-1000-3C2
Luminance surface (WxH) [mm] φ85
Lighting method DC
Wavelength [nm] Red: 630+/-15
Yellow: 590+/-15
Green: 500+/-15
function Change frequency of light
Change duty of light
External pulse input function
Setting range Frequency: 1.00-3000Hz]
Duty: 1.0-100
LED output value: 0-4095
Setting range Frequency: 0.1[Hz]
Duty: 0.1[%]
LED output value: 1

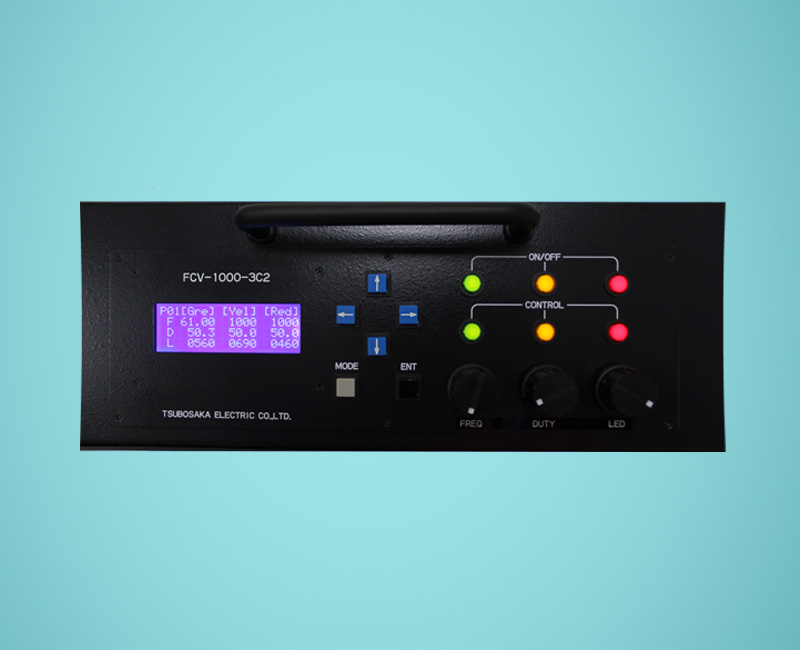

Display / Operation Operation of the main part
External (serial) communication control
Communication I / F USB 2.0 compliant
Power-supply voltage AC100-240V 50/60Hz
Power consumption [VA] Less than 40
Dimensions (WxHxD) [mm] 435x253.5x113 (without protrusions)
Weight [kg] 4.6
