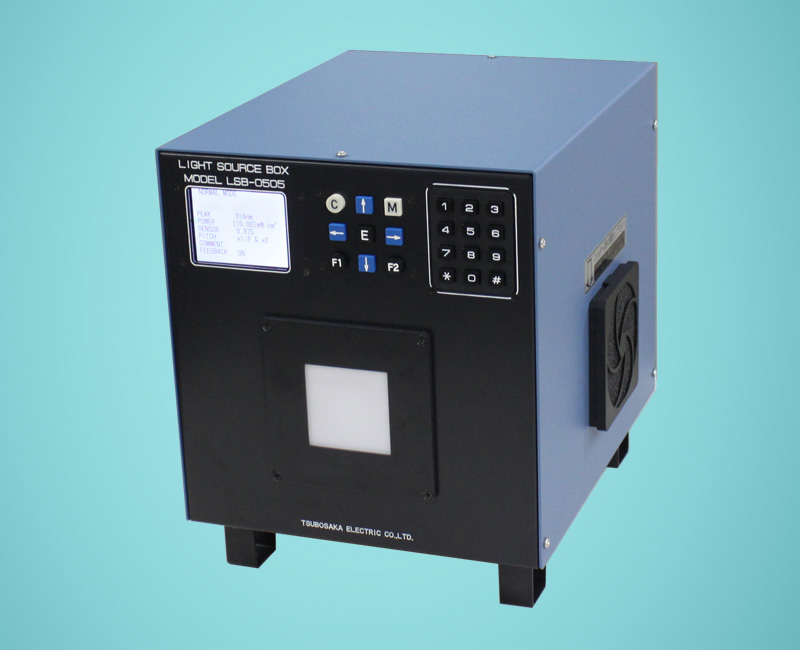

Arbitrary Intensities NIR Light Source Box– LSB-0505FB-IR

  • Highest Intensity 100mW/㎠ or more; Reproduce higher intensity than energies of each wavelength of solar spectrum
  • Input an intensity arbitrarily; Easy and Simple Control by the keypad, color LCD display
  • IR intensity feedback function; Long stable light regardless surrounding temperature

Relevant Model

NIR Surface Light Viewer: VLB-3020FBW-IR8594

High Intensity NIR illumination: SOL-900-06IR85/94

Budget Model of NIR illumination:SOL-300IR-8594

ToF/LiDAR Evaluation System



Bookmark

Model LSB-0505FB-IR
Luminance surface (WxH) [mm] 50 x 50
Intensity unevenness [± %] 2.5
Lighting method DC
Wavelength [nm] 850, 910, 940, 1050, 1300, 1450, 1550, 1650
Intensity [mW/㎠] 0.8~110.0 (in case of 910nm)
function Arbitrary Input of intensity by the keypad
Switch the input intensities
Reproduce the intensity converted by illuminance value (based on AM1.5 Solar Spectrum)*Reproduce relative intensities that intensities of our light source adjust to each wavelength of AM1.5 Solar Spectrum
IR Intensity Feedback Function Gen.3(Include in invalid of itself)
IR Sampling Display
DARK shutter, LED OFF(Simple dark function)
ON/OFF the backlight of the display
Pulse Lighting Function(Internal/External trigger)
Lock the key control (Remote mode)
AUTOCAL function ( with Luminance meter LC-5IR)
Communication I / F Connector: USB2.0 Type-B
UART by visual COM port via USB port (without control of three-wire system)
Power-supply voltage AC100-240V, 50/60Hz
Dimensions (WxHxD) [mm] 222.0 x 268.9 x 275.0 or
344.5 x 320.6 x 441.8
Weight [kg] 6.5 or
18.0
