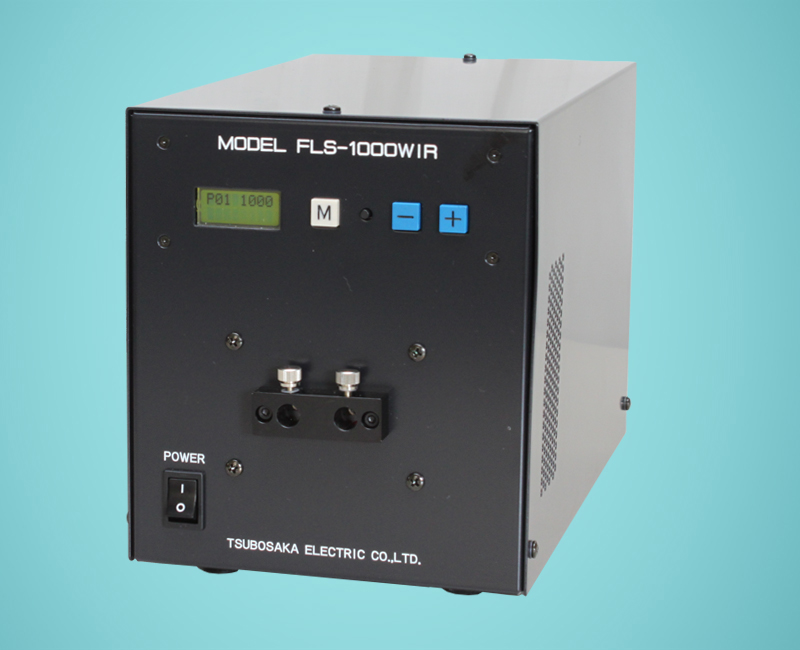

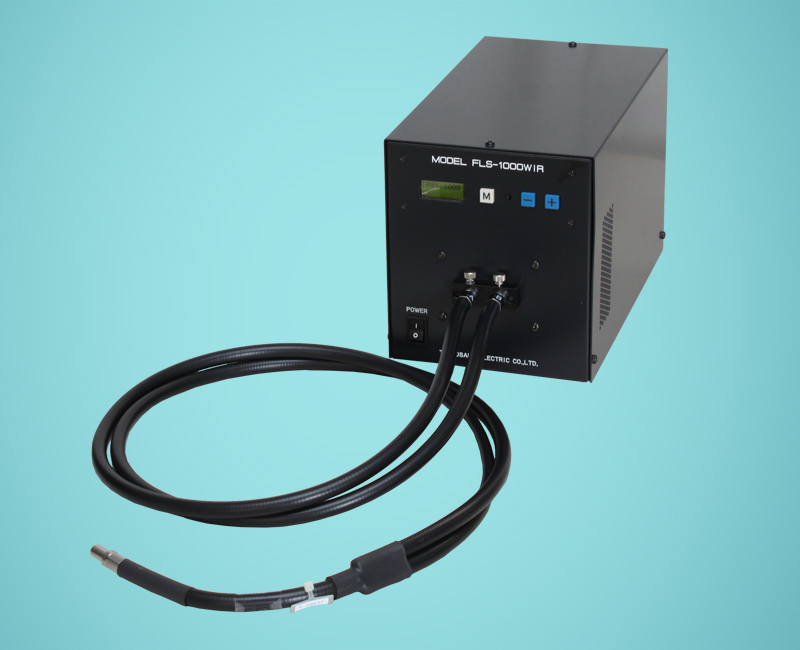

Fiber Optical Light Source — FLS series

  • Fiber light guide illumination device with using white LED as light source
  • High color rendering LED which has the almost same spectral distribution as sunlight
  • Spot irradiating illumination device for image processing
  • Can change to NIR (850nm, 910nm, 1050nm, 1300nm, 1550nm etc.)
  • Can change to UV (365nm, 385nm, 395nm, 405nm etc.)

Bookmark

Model FLS series
Correlated color temperature [K] 6500+/-500
Light source LED
Lighting method DC
Illuminance [lx] 3000 (0.2ⅿ from an outlet)
Function Switch entered LED output
Fine adjustment of LED output
Display / Operation Operation unit of the main part
External communication control (serial communication with the virtual COM port)
Communication I / F USB2.0
Power-supply voltage AC100-240V 50/60Hz
Power consumption [VA] 100
Dimension (WxHxD) [mm] 145x170x245
Weight [kg] 6
Extension function Multiple color temperature
NIR (850nm, 910nm, 940nm,1050nm, 1300nm, 1550nm)
UV (365nm, 385nm, 395nm, 405nm)
Attaching various fiber light guides
 Inquiry about this product

Related product

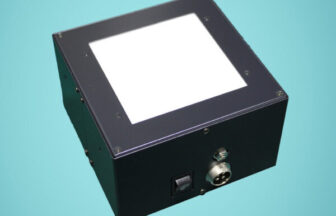

  1. VLB-3020FBW3-CRI–Ultra high color rendering LED light box–

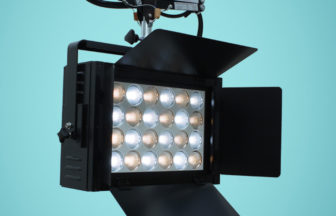

  2. Artificial solar lighting (Artificial sunlight illumination)– SOL-600-01T05
