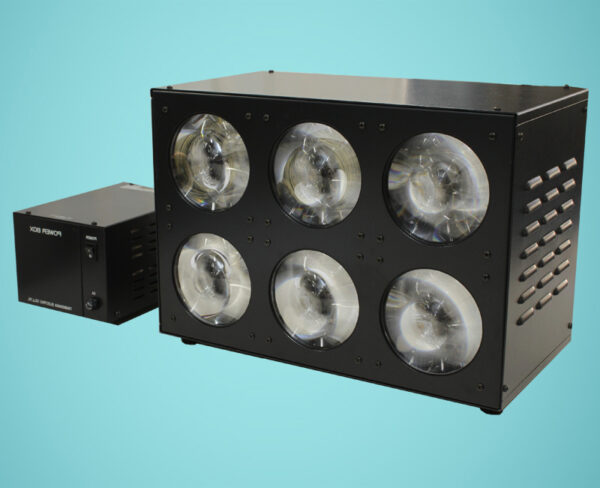

NIR High Intensity Illumination–SOL-900-06IR85/94

Powerful intensity NIR illumination

  • Reproduce Visible + NIR
  • NIR intensity is equivalent to visible 100,000lx
  • Used for ToF/LiDAR evaluation system
  • External communication control by serial communication
  • it can produce the outdoor environments in the building

The main purposes of use are…

Color evaluations  for clothes, cosmetics etc…

Visual inspections for parts of products, jewellery etc…

Cultivations of plants also Seedings etc…

You can also use it for indoor sunbathing indeed !

SOL-900-06IR85/94 is also used for ToF/LiDAR evaluation system

Other types of NIR illuminations…

SOL-300IR-8594: Budget model

VLB-3020FBW-IR8594: Surface light source type

If you would like higher intensity models, jump to this page; 2SICS-1000, SOL-6000

Please consult us anytime for customizations, upgrade models, specific information of products.

Bookmark

Model SOL-900-06IR85 (850nm)
SOL-900-06IR94 (940nm)
Light source NIR LED
Lighting method DC
Intensity [mW/㎠] 850nm: 0.1-7.8 (1m ahead)
940nm: 0.1-8.0 (1m ahead)
function Changeable programs of NIR intensity
Adjusting function of NIR intensity
Display / Operation Lighting operation unit
External communication control
Communication I / F USB2.0
Power-supply voltage AC100-240V 50/60Hz
Operating environment Temperature: 10-40[℃]
Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm] Lighting unit: 380x275x200
Power supply unit: 140x120x200
