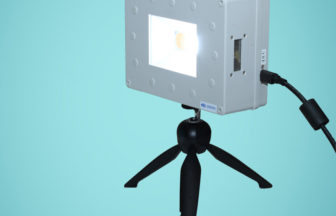

High color rendering LED light box– VLB-10FBC-CRI

  • It can switch luminance values and register settings of some features
  • Responding to the external controls by USB
  • Using high color rendering LED Ra=97
  • Flicker free with DC lighting method
  • Optional features responding to customer’s budgets and requests
  • Luminance feedback feature (adjusting luminance values) for stable lighting

PWM lighting model: VLB-10FBW2-CRI

Near Infrared LED model: VLB-10FBW-IR8594

Bookmark

Model VLB-10FBC-CRI
Luminance [LV] 11.5-14.0
Luminance [cd/㎡] 400-2300
Luminance surface (WxH) [mm] 100x100
Correlated color temperature [K] Select one or two from the below
A: 3200±150K
B: 5500±500K
C: 6500±500K
Light source LED
Lighting method DC
function Change the registered luminance values
Luminance adjusting feature (luminance feedback feature)
Communication I / F USB 2.0 compliant
Power-supply voltage AC adapter
AC100-240V 50/60Hz
Power consumption [VA] 20VA or less
Operating environment Temperature: 15℃~30℃
Humidity: less than 80% without dew condensation
Dimensions (WxHxD) [mm] 187x194x56
Weight [g] 600
Extension Change the size of luminance surface
Add registered luminance points (maximum 20 points)
Setting of color temperatures
Extend the maximum luminance range by 5.0EV
The maximum luminance LV15 (5000cd/㎡)
