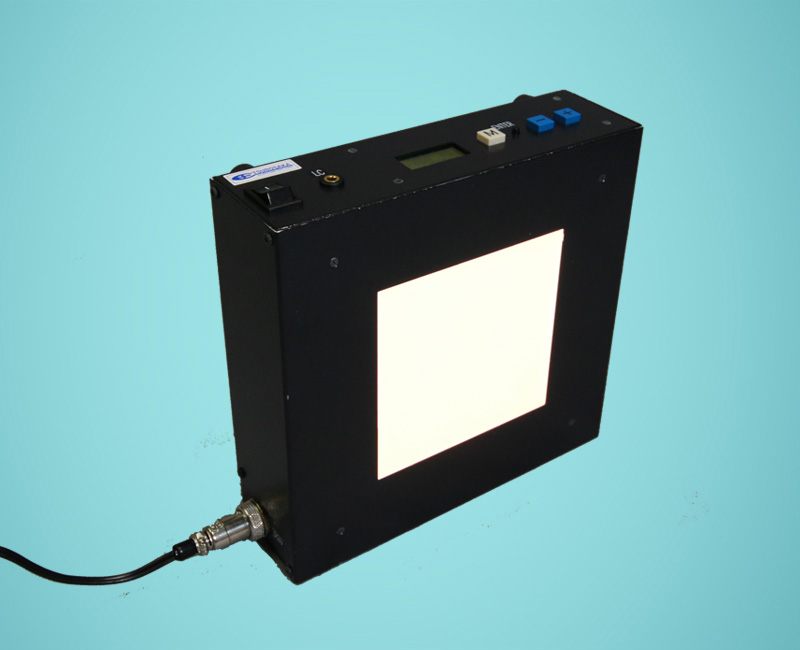

Ultra high color rendering LED light box– VLB-10FBW2-CRI

Catalog Download

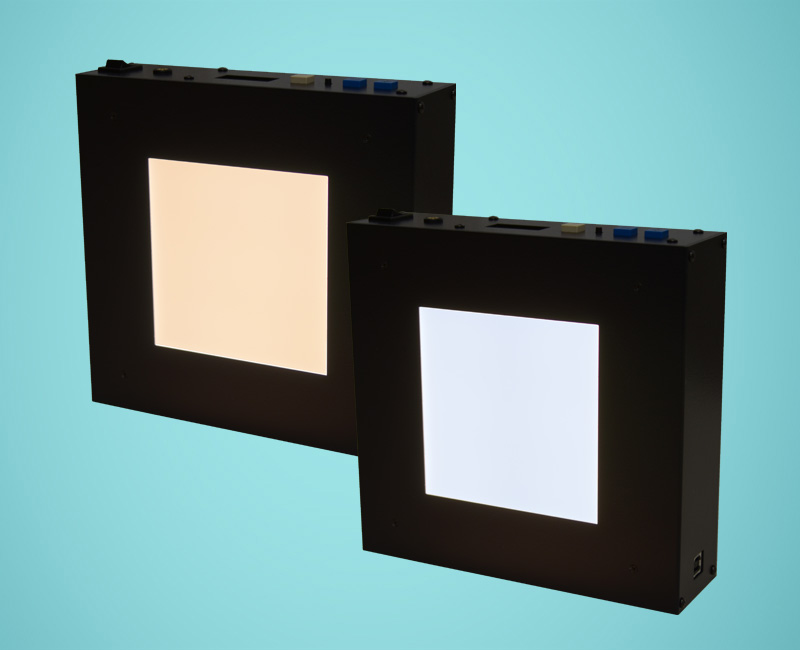

  • Switch two types of color temperatures
  • Continuous stable luminance with luminance feedback function
  • Change and Set luminance
  • Set low luminance (20cd/㎡)
  • Using high color rendering LED Ra=97
  • Easy to control the device with the designated PC software

Steller performance models

Middle grade light source box: LSB-1010FB series

High grade light source box: LSB-1010WCRI

Larger light surface models

A4 paper size model: VLB-3020FB series

A3 paper size model: VLB-4230FB series

Please turn on the subtitle while watching the video.

View the product in 3D
(There may be parts that are different from the actual product or parts that are not displayed due to capacity reasons)

WP 3D Thingviewer Lite need Javascript to work.
Please activate and reload the page.

Bookmark

Model VLB-10FBW2-CRI
Luminance range [LV] 7.0-14.0 (set 10 luminance points)
Luminance range [cd/㎡] 20-2500 (set 10 luminance points)
Luminance surface (WxH) [mm] 100x100
Luminance unevenness [± %] 2.5

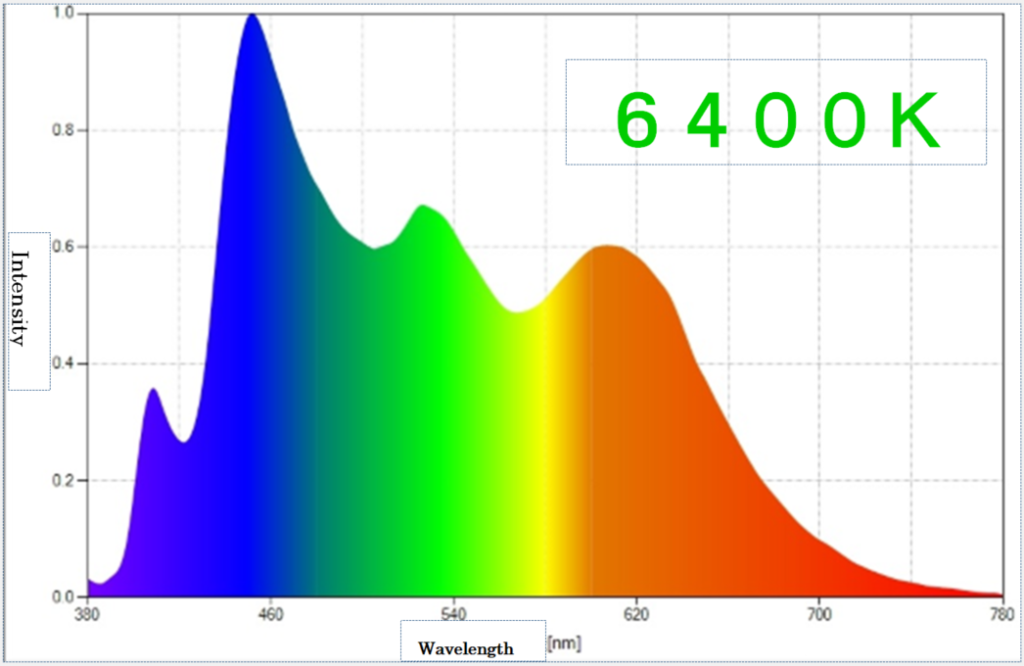

Correlated color temperature [K] Select two color temperatures from the below
3200+/-150

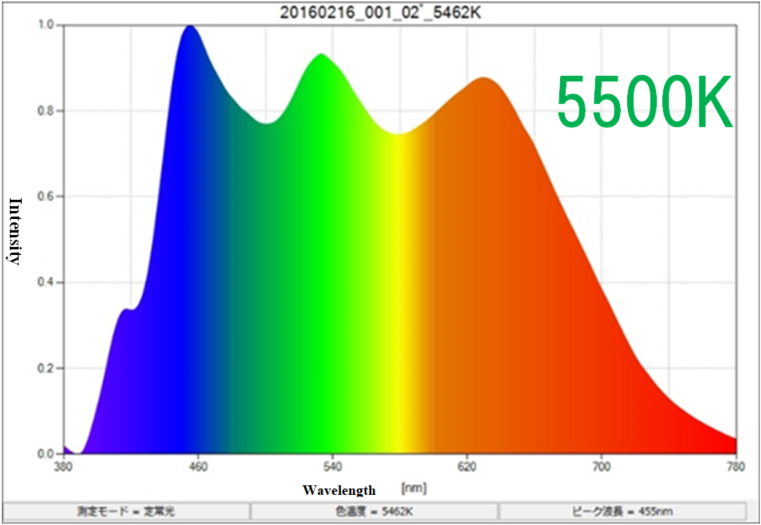

5500+/-500
6500+/-500
Light source LED
Lighting method PWM 100[kHz]
function Change registered luminance
Adjust luminance function
Luminance feedback function
Switch color temperatures function
Auto calibration (connect to LC-5)

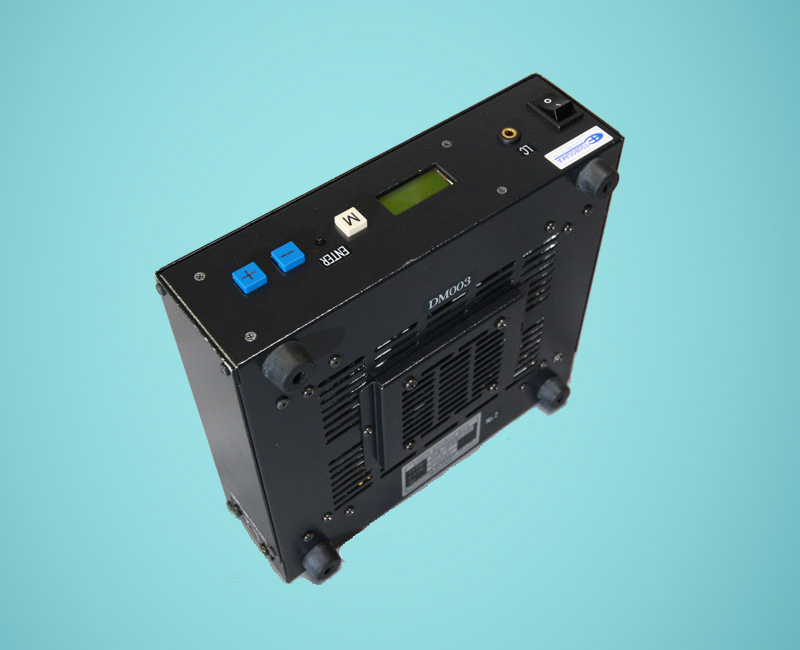

Display / Operation Operation unit of the main part
Designated PC software operation
External communication control (serial communication)
Communication I / F USB 2.0 compliant
Power-supply voltage AC100-240V 50/60Hz
Operating environment Temperature: 15-30[℃]
Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm] 187x194x56
Weight [g] 550
Extension Change luminance surface size
Pulse lighting (internal and external)
Chart holder
Arbitrary color temperature setting
Additional luminance setting points (maximum: 20)
Maximum luminance range LV15 (5000cd/㎡)
