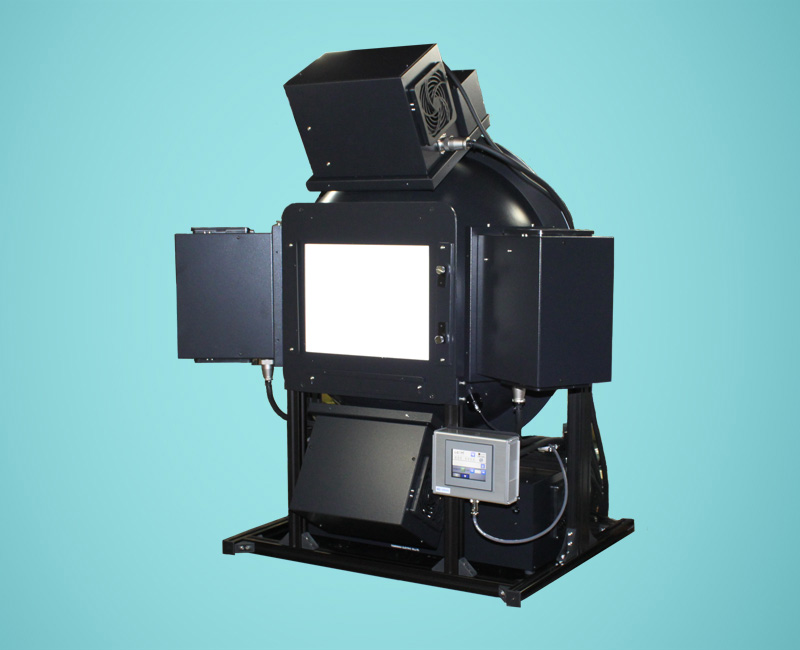

Upper grade High uniformity Integrating sphere– LSBS-600CRI

Catalog Download

  • Φ600mm integrating sphere light source box
  • High uniformity of luminance surface 270×160mm; unevenness of luminance +/- 1%
  • High luminance 40,000 cd/㎡
  • Distribute continuous stable luminance with luminance feedback function

Other type high uniformity light source: LSBS-310WCRI

Semi-sphere upper grade light source box: LSBH-30CRI

Semi-sphere light source box: VLBH-95FBCW-CRI

Bookmark

Model LSBS-600CRI
Luminance [cd/㎡] 2.5-40,000
Luminance surface (WxH) [mm] 290x210
Active luminance surface (WxH) [mm] 270x160
Luminance unevenness [± %] 1.0
Correlated color temperature [K] Select one color temperature from the below
3200+/-150
5500+/-500
6500+/-500
Light source LED
Life span Approx. 20,000[H] Depends on an operating condition
Lighting method DC
function Arbitrary luminance setting function
Luminance feedback function
Auto calibration (connect to LC-5)
Setting range +/-3
Setting range 600
Display / Operation Operation unit of the main part
External communication control (serial communication)
Communication I / F USB 2.0 compliant
Power-supply voltage AC100-240V 50/60Hz
Power consumption [VA] 1400
Operating environment Temperature: 20-35[℃]
Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm] 981x1056x665
Weight [kg] 70
Extension Arbitrary color temperature setting
Change luminance surface size
Two types of LED
