- Suitable for wide angle camera evaluations
- Spectral feature is equivalent to sunlight
- High color rendering LED Ra-95
- Luminance surface shapes semi-sphere with high uniform luminance
- Select color temperature
- Stable luminance with luminance feedback function
- NIR version (850nm, 940nm, 1050nm, 1300nm, 1550nm etc.)

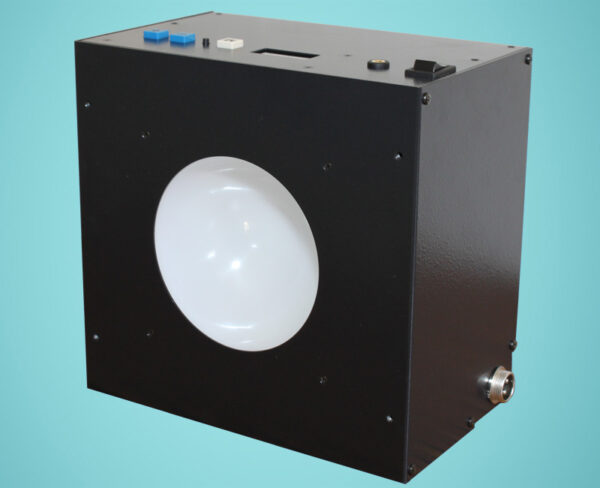

Spherical Diffuser Light Source Box– VLBH-95FBWC-CRI
| Model | VLBH-95FBCW-CRI |
|---|---|
| Luminance [cd/㎡] | 300-2400 Programmed brightness points: 10 points |
| Luminance surface (WxH) [mm] | φ95 |
| Luminance unevenness [± %] | 1.5 |
| Correlated color temperature [K] | 3200+/-150 6500+/-500 |
| Light source | LED |
| Lighting method | DC |
| Function | Changeable input luminance Fine tuning luminance function Luminance feedback function Switch entered color temperatures Auto calibration (connecting LC-5) |
| Communication I / F | USB2.0 |
| Power consumption [VA] | 40 |
| Dimension (WxHxD) [mm] | 187x180x114 (except protrusions) |
| Weight [g] | 950 |
| Extension function | Setting color temperatures Extend luminance range Pulse lighting (internal/external) Change to NIR light source Add entered points of luminance (maximum 20 points) |
