Ultra high color rendering LED light box–VLB-3020CRI

  • Standard color LED viewer
  • High color rendering LED Ra=97
  • Can be used with both chart sizes; aspect ratio 4:3 and 16:9
  • Luminance can be calibrated with an optional luminance meter (LC-5)
  • Many other options can be set; Extend luminance range, Extend number of color temperatures or Chart holder etc.

WP 3D Thingviewer need Javascript to work.
Please activate and reload the page.

Bookmark

Model VLB-3020CRI
Luminance range [LV] Luminance register points; 10 points
Select 2EV from 7.0-14.0
Luminance range [cd/㎡] Luminance register points; 10 points
Select 2EV (4times) from 300-2300
Luminance surface (WxH) [mm] 300x200
Luminance unevenness [± %] 2.5

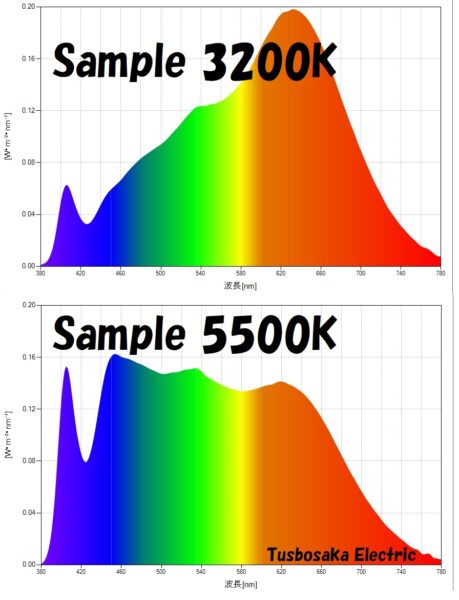

Correlated color temperature [K] Select one color temperature from the below
3200+/-150
5500+/-500
6500+/-500
Light source LED
Lighting method PWM 100[kHz]
function Change registered luminance
Adjust luminance function
Display / Operation Operation unit of the main part
External communication control (serial communication)
Communication I / F USB 2.0 compliant
Power-supply voltage AC100-240V 50/60 Hz
Power consumption [VA] 40
Operating environment Temperature:15-30 [℃]
Humidity: less than 80% without dew condensation
Dimensions (WxHxD) [mm] 435x330x120
Weight [kg] 5
Extension Upward compatible model: VLB-3020FBW3-CRI
Attach the arbitrary color temperature function
Attach 2 types of color temperature
Change luminance range
Chart holder
Add registered points of luminance (maximum 20 points)
