Nine points reflective light meter– STB-209XL2

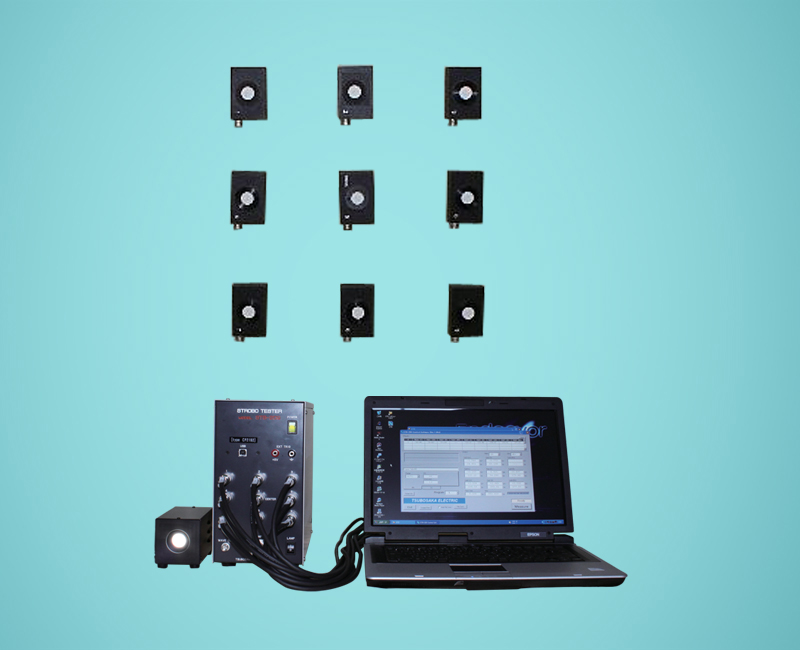

  • Measures the light emission quantity and light quantity distribution of the strobe flash at the nine points light receiver
  • Monitors the light emission of both xenon and LED
  • Measures the light emitting time and peak light quantity
  • The magnetic absorption light receiver is easy to attach/detach
  • Data management on the PC’s software
  • Measurement data is saved as the CSV format

Bookmark

Model STB-209XL2
function Display measured value
Change measurement conditions
Save measurement results
Setting range Photosensitivity (3 levels)
Measurement time
Measurement pattern
Measurement resolution
Judgment criteria
Setting range ±2
Scan range Silicon photo diode
Measurement item (1) Main light volume(1 point) and peripheral light volume(8 points)
Light volume[lx・s], Light volume[GN], Light distribution[⊿EV,%], Maximum illuminance[klx], Illuminance[lx]
(2) Only main light volume (added to the above measurement items)
Light volume[AV/Fno], Maximum illuminance[lx], Flash time[ms], Attenuation rate[%]
Measurement method Main light receiving part : Sampling waveform analysis method of incident light
SUB light receiving part : Light volume integral method
Display / Operation PC software operation
Supported OS Windows7,10
Measurement time[ms] LX-MODE : 30 - 1400
Measurement time [s] MP-MODE : 1 - 10
Judgment function OK / NG judgment
Communication I / F USB 2.0 compliant
Power-supply voltage AC100 - 240V 50/60Hz
Power consumption [VA] 50
Dimensions (WxHxD) [mm] Main unit : 140 x 264 x 280
Light receiving parts : 75 x 50 x 45
Calibration light source : 110 x 120 x 230
Weight [kg] 12
Accessories Light receiving part (9pcs)
Light receiving connection cable (9pcs)
Calibration light source
 Inquiry about this product

Related product

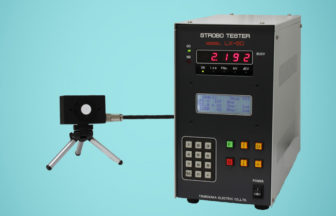

  1. Sampling flash meter LX-60
