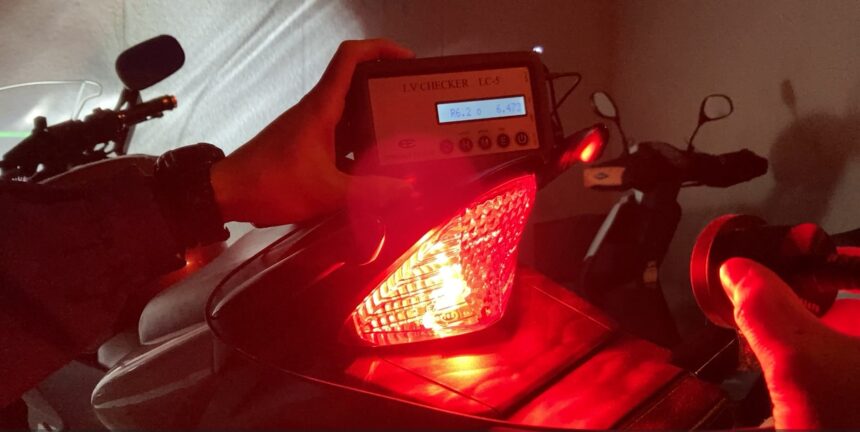

- Measure and indicate a diffrence of luminoius intensity within tail lights and brake lights
- Small and portable enclosure
- Never miss a meansuring moment with data hold function
- It can maesure at dark place with a backlight
- Measuring result is managed by PC
- Correction function for an arbitrary basic luminance
Brake lights checker– LC-5BLC
| Model | LC-5BLC |
|---|---|
| function | Data hold (keep displaying a value) Backlight (countinuous lighting or lighting for 5 seconds) AUTO POWER OFF (5 seconds) *It doesn't activate while using AC adapter |
| Sensor | Si photodiode (φ10mm, wavelength sensitivity 400-700nm) Luminous factor correction (3% or less) with built-in filter |
| Object to inspect | Brake lamp (3m between almp and light reciever as an initial setting) |
| Measurement item | Luminousity [cd] Diffrence of luminousity within 2 points [times] Determination function for ratio [〇/✕] |
| Display / Operation | Main unit External communication control (serial) |
| Communication I / F | USB 2.0 compliant RS-232C compliance |
| Power-supply voltage | AA battery: 2 units AC adapter: AC100-240V/ 50/60Hz |
| Dimensions (WxHxD) [mm] | 141 x 34 x 81 |
| Weight [g] | 310 |

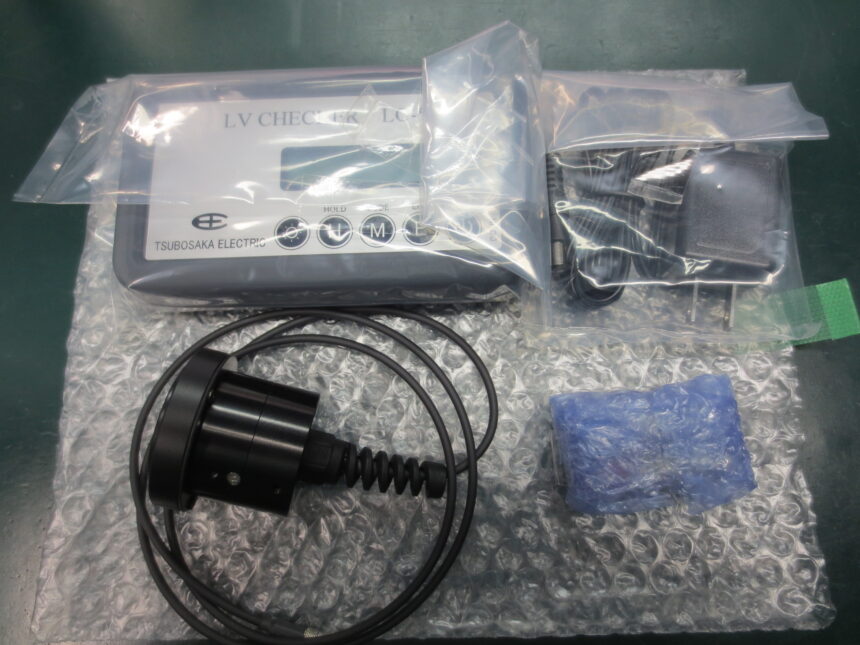

| Accessories | AA battery: 2 units AC adapter Silicon cover Case |
| Extension | Tripod for equipping with light reciever |
