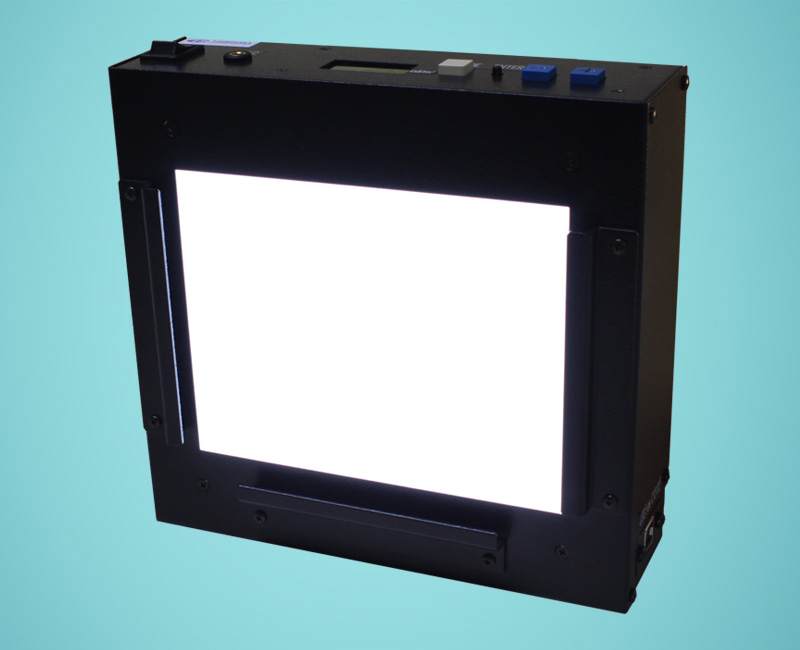

High color rendering LED Light source box– VLB-1411FBC-CRI

  • Non-flicker LED light source box which has resembling spectrum of Halogen and Xenon
  • Completely non-flicker with DC lighting method
  • Stable luminance value with the luminance feedback function
  • Easy operation with the designated PC software control
  • Registration of the arbitrary settings and Loading function

Bookmark

Model VLB-1411FBC-CRI
Luminance range [cd/㎡] Luminance register points; 10 point
300-1700
Luminance surface (WxH) [mm] 140x110
Luminance unevenness [± %] 2.5
Correlated color temperature [K] Select 1 from the below
3200+/-150
5500+/-500
6500+/-500
Light source LED
Lighting method DC
function Changeable registered luminance
Adjusting luminance function
3) Turn OFF LED function
Luminance feedback function
Auto Calibration (connect to LC-5)
Display / Operation Operation unit of the main part
Designated PC software
External communication control (serial communication by virtual COM port)
Communication I / F USB 2.0
Power-supply voltage AC100-240V 50/60Hz
Operating environment Temperature: 20-30 [℃] less than +/-2 degrees Celsius recommendation
Humidity: less than 80 [%] without dew condensation
Dimensions (WxHxD) [mm] 186x193x68
Weight [g] 600
Accessories Designated PC control software
Chart holder
Extension Change color temperature
Expand luminance range
Pulse lighting (internal and external)
Add registration points of luminance(Maximum 20 points)
