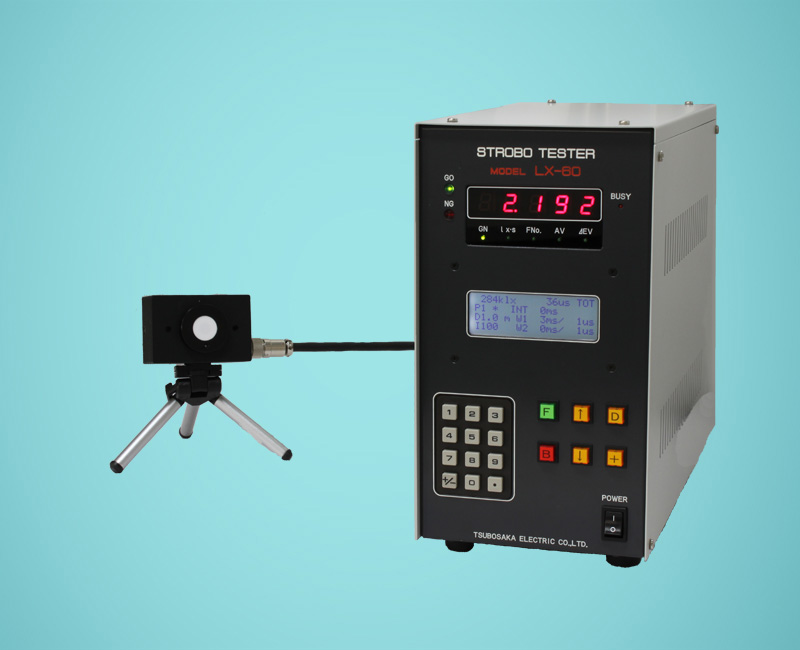

Sampling flash meter LX-60

  • Measure 7 items, including light emission quantity
  • Measure/Integrate luminous intensity every 1 [μsec.] or longer to calculate the light quantity (Sampling waveform analysis)
  • Best for manage and measure of Xenon flash lamps, flashing lamps and guide lamps
  • Measures “Maximum light intensity” and “Light emission time”, in addition to the measurement items of LX-25
  • Measuring time can be changed (1~90ms)
  • Measure LED strobe lights with the optional photodetector (LX-60LD)
  • Measures a wide range of luminance from dim to bright without switching the mode (AUTO MODE)

Bookmark

Model LX-60
function Display measured value
Change measurement conditions
Setting range Photosensitivity (3 levels)
Measurement time
Measurement pattern
Measurement resolution
Judgment criteria
Setting range ±2
Sensor Three types are available according to the illuminance
Object to inspect Small and medium-sized light emitting products such as camera/mobile phone/smartphone
Measurement item Light exposure [lx・s] : Time integration value of flashing light luminescence
Guide No. [GN] : The proper value of the film sensitivity and the distance of the photography to a light exposure
Fno. [Fno.] : The proper value of Fno. to a light exposure
Aperture value [AV] : Iris diaphragm index
⊿EV [EV] : The deviation to the setting standard value
Maximum illuminance [lx] : Illuminance:Brightness of a surface lighted up by the light
Luminescence time [ms] : Time from start of emission of light to end of emission of light
Measurement range Luminescence light quantity : 0.1 - 9999 [lx.s]
Measurement method Sampling waveform analysis method
Display / Operation Main unit operation
External (serial) communication control
Supported OS Windows7,10
Measurement time[ms] 1 - 90
Judgment function OK / NG judgment

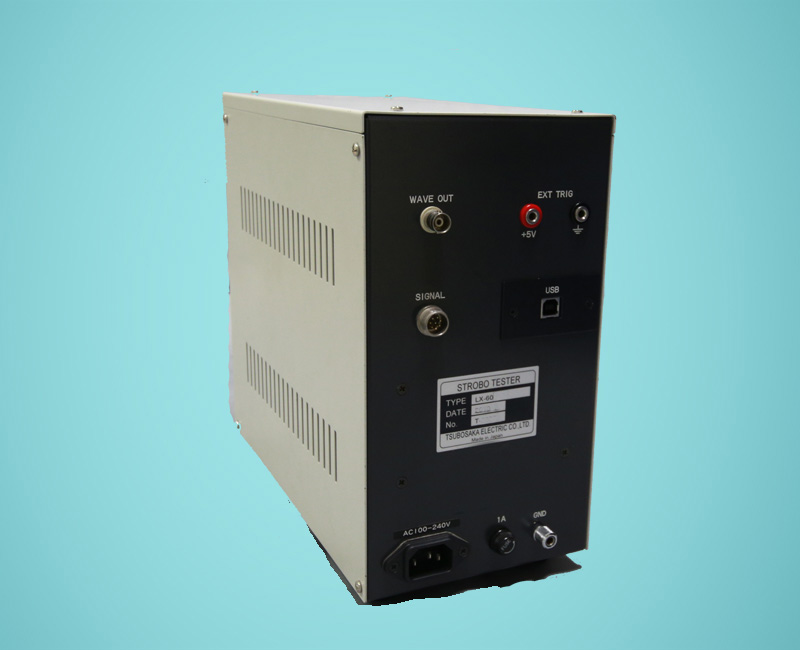

Communication I / F RS-232C compliant or USB 2.0 compliant (option)
Power-supply voltage AC100 - 240V 50/60Hz
Dimensions (WxHxD) [mm] Main unit : 140 x 264 x 280
Light receiving part : 75 x 50 x 60
Weight [kg] 6
Accessories Light receiving part (1pcs)
Light receiving connection cable (1pcs)
Extension Low illuminance measurement
Hihg illuminance measurement
PC software
 Inquiry about this product

Related product

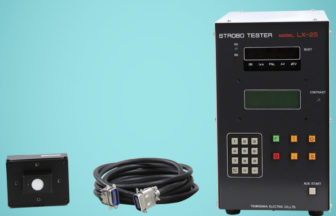

  1. Integral flash meter– LX-25

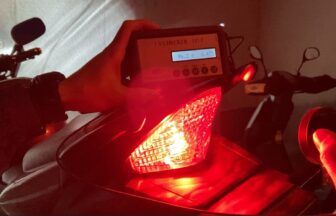

  2. Luminance Meter– LC-5
