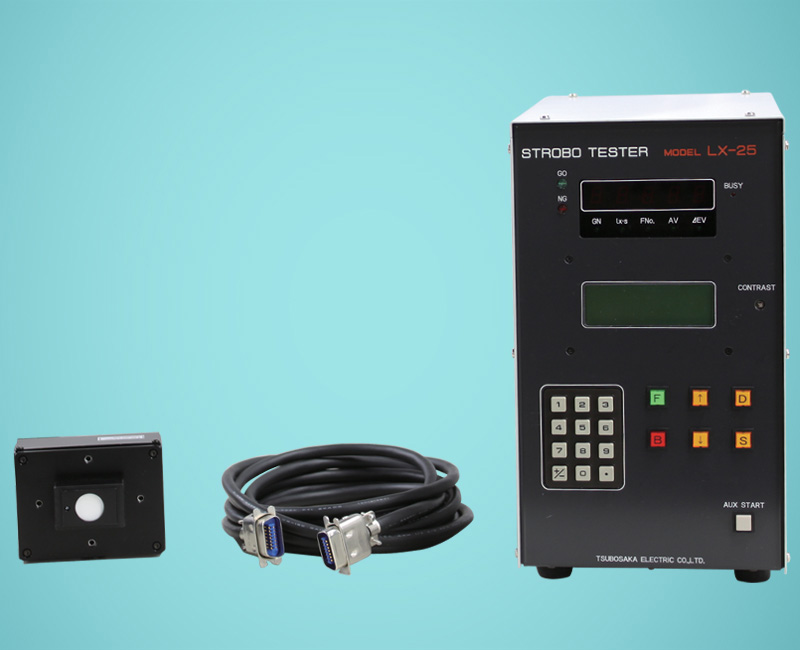

Integral flash meter– LX-25

  • Measure 5 items, including light emission quantity
  • Measure light emission by store in the capacitor (Integral method)
  • Used for a target emitting light in a few μ seconds
  • The most suitable for manage and measure of Xenon, LED flash, flashing lamp and guide lamp
  • Display a light quantity value with integrated until light emission is completed
  • Measurement of a small /large capacity strobe can be performed by switching to an optional light receiver
  • Remote control is possible as it is connected to an external communication
  • Reasonable model; LXP-22 allows to set, measure and display the data on the PC, suitable for line inspection

Bookmark

Model LX-25
function Display measured value
Change measure conditions
Setting range Photosensitivity (3 levels)
OK/NA Decision criteria
Setting range ±2
Sensor Three types are available according to the illuminance
Object to inspect Small and medium-sized light emitting products such as camera/mobile phone/smartphone
Measurement item Light exposure [lx・s] : Time integration value of flashing light luminescence
Guide No. [GN] : The proper value of the film sensitivity and the distance of the photography to a light exposure
Fno. [Fno.] : The proper value of Fno. to a light exposure
Aperture value [AV] : Iris diaphragm index
⊿EV [EV] : The deviation to the setting standard value
Measurement range Luminescence light quantity : 0.5 - 1,340 [lx.s]
Measurement method Integration method
Display / Operation Operation of the main part
External (serial) communication control
Supported OS Windows7,10
Measurement time[ms] 30
Judgment function OK / NG judgment
Communication I / F RS-232C compliant
Power-supply voltage AC100 - 240V 50/60Hz
Dimensions (WxHxD) [mm] Main unit : 160 x 285 x 310
Light receiving part : 95 x 73 x 60
Weight [kg] 6.4
Accessories Light receiving part (1pcs)
Light receiving connection cable (1pcs)
Extension Low illuminance measurement
Hihg illuminance measurement
PC software
 Inquiry about this product

Related product

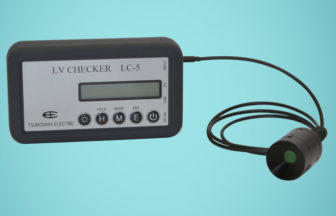

  1. Luminance Meter– LC-5

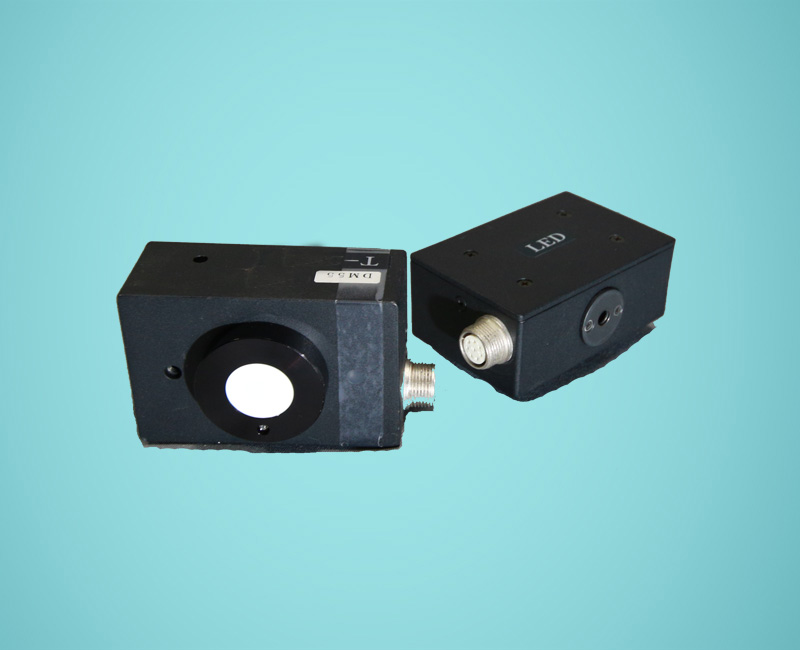

  2. Sampling flash meter LX-60
