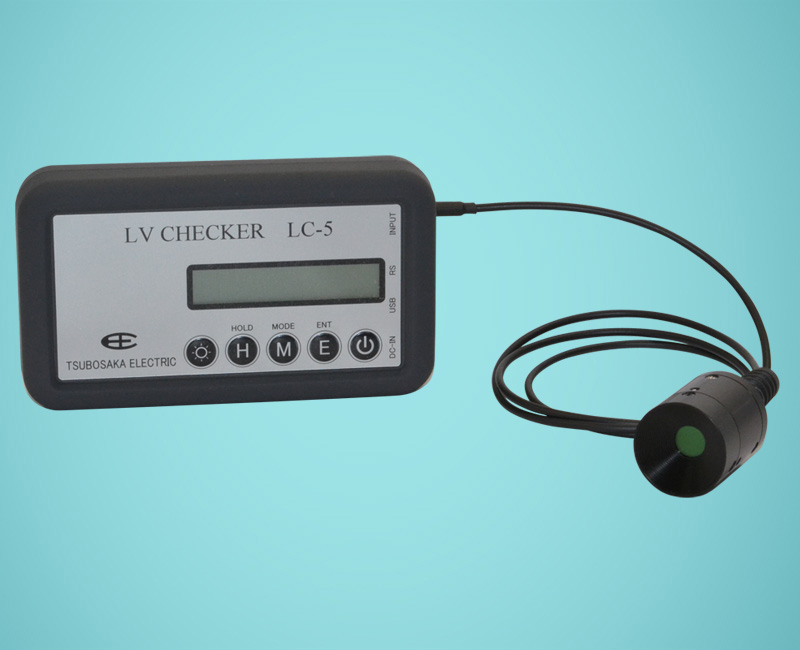

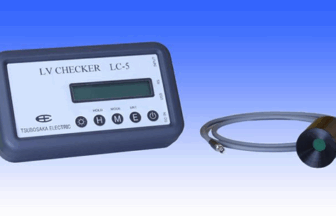

Luminance Meter– LC-5

Catalog Download

  • Easy to measure luminance with pushing a light receiver of LC-5 to a luminance surface of light source
  • Small handy device to use at anywhere, any situation
  • Never miss a measurement opportunity with the data hold function
  • Can be used at a dark place with the backlight of the display
  • Measure low luminance such as fluorescence from 8[mcd/㎡]
  • Measure high luminance maximum 73,370[cd/㎡]
  • Manage measurement results on the PC
  • Correcting function of an arbitrary luminance
  • Water and dust prevention type (MC-5)

Please turn on the caption when you watch this video.

Bookmark

Model LC-5
function Data hold (Hold of display value)
Backlight (5 seconds lighting or consecutive lighting)
AUTO POWER OFF (Approx. 5 minutes)
Sensor Silicon photo diode (φ10mm, sensitivity of wavelengths 400-700nm)
Built-in the luminosity factor correction (Less than 3%)
Object to inspect Diffusing light surface
Measurement item Luminance (LV/cd/㎡/rlx)
Measurement range [LV] -4.00 - 19.00 (K:1.3, ISO 100)
[cd/㎡] 0.00875 - 73,370
[rlx] 0.02448 - 230,500
Display / Operation Operation of the main part
External (serial) communication control
Communication I / F USB 2.0 compliant
RS-232C compliant
Power-supply voltage 2 AA battery
AC adapter
AC100 - 240V 50/60Hz
Dimensions (WxHxD) [mm] 141 x 34 x 81
Weight [g] 310
Accessories 2 AA battery
AC adapter
Silicon cover
Carrying case
