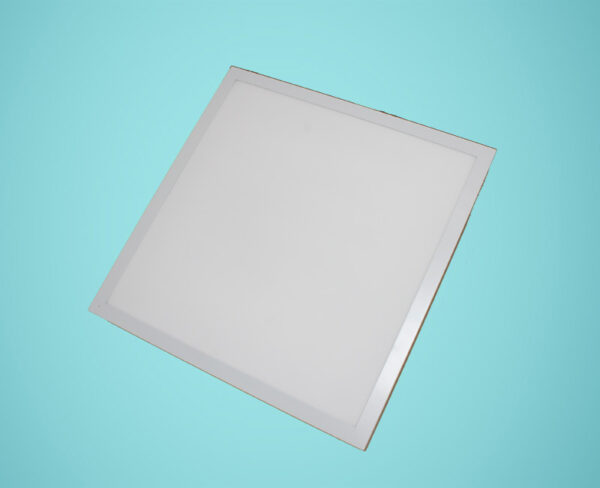

Infrared LED surface light source–VLB-5050IR-FB940

  • 500mmx500mm surface IR light source
  • Can be used as a surface illumination device
  • High uniform infrared intensity in the surface

Bookmark

Model VLB-5050IR-FB940
Luminance surface (WxH) [mm] 546x546
Active luminance surface (WxH) [mm] 500x500
Intensity unevenness [± %] 5
Light source LED
Lighting method DC
Wavelength [nm] 940
Intensity [μW/㎠] 100-500
function Fine tuning of infrared intensity
Infrared feedback function
Communication I / F USB2.0
Power-supply voltage AC100-240V 50/60Hz
Operating environment Temperature: 15-30[℃]
Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm] 604x604x55
Extension Change the selected wavelength (850, 1050, 1300, 1550[nm] and so on)
 Inquiry about this product

Related product

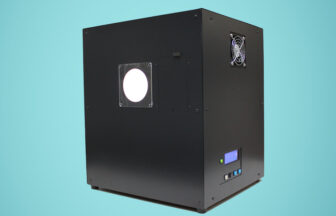

  1. High uniformity Integrating sphere–LSBS-310WCRI
