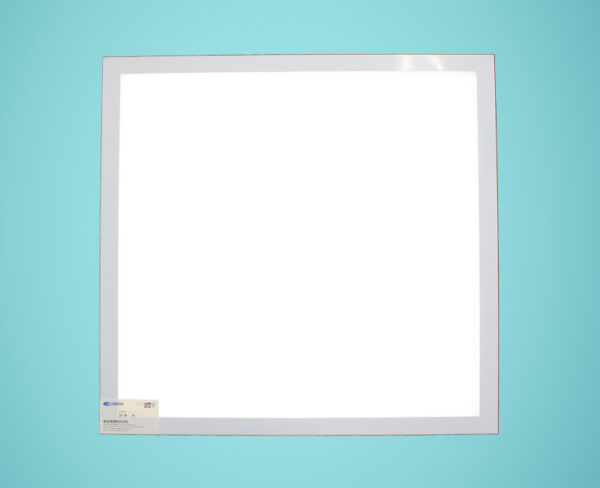

For taking a picture of charts Large luminance surface LED light panel– VLB-500LED3

Catalog Download

  • Large luminance surface 500x500mm, Thin body 55mm

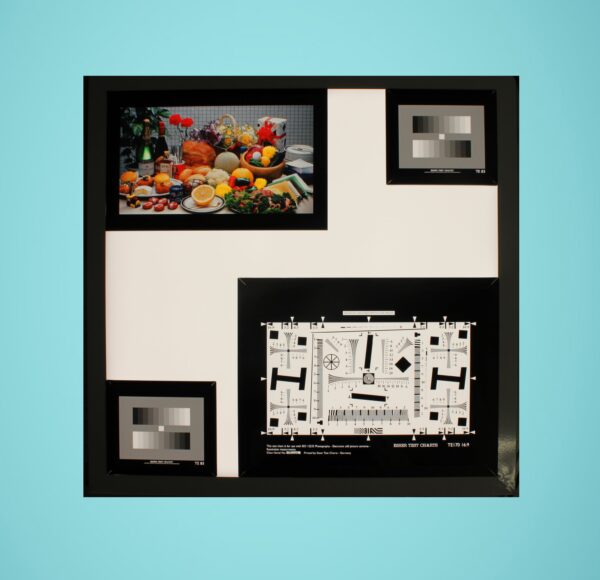

  • Taking pictures of multiple charts at the same time

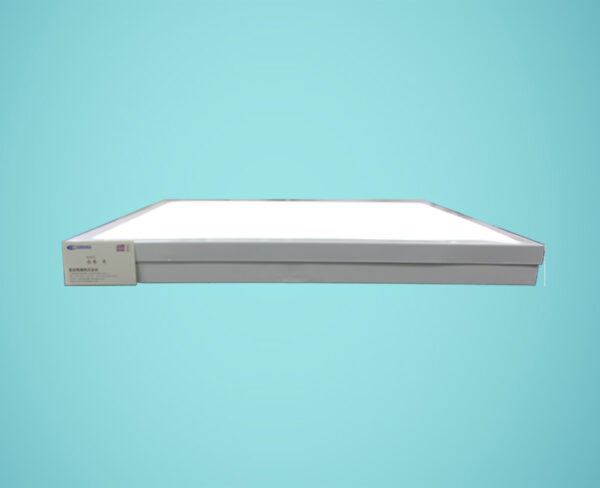

  • Thin body makes it more flexible to place the device
  • Special diffuser and mechanism
  • Suitable for the wide angle camera evaluation
  • Non-flicker DC lighting
  • Reflect preventions of luminance surface reduce background reflections

Bookmark

Model VLB-500LED3-N
Luminance [cd/㎡] 500-3200
Luminance surface (WxH) [mm] 546x546
Active luminance surface (WxH) [mm] 500x500

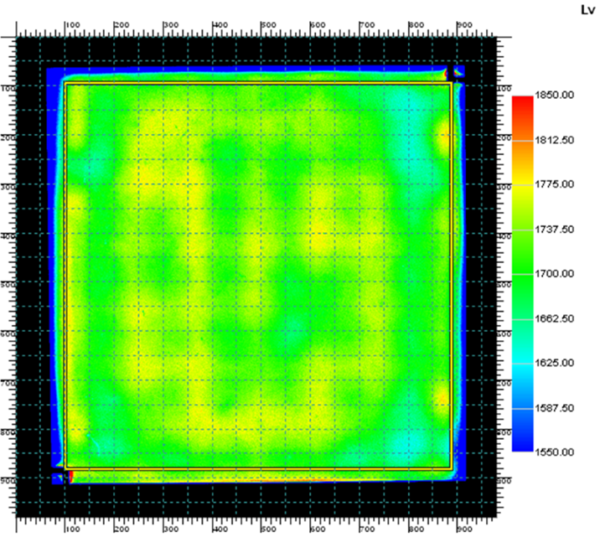

Luminance unevenness [± %] 5
Correlated color temperature [K] 5500+/-500
Light source LED
Lighting method DC
Illuminance [lx] 2000-14000
function Fine tuning of luminance
Power-supply voltage AC100-240[V] 50/60[Hz]
Operating environment Temperature: 5-40[℃]
Humidity: less than 90[%] without dew condensation
Dimensions (WxHxD) [mm] 604x604x55
Weight [kg] 5
Extension Change luminance surface size (Maximum 2mx2m)
Change color temperature
Setting of the aperture area for camera
Change LED to high color rendering version
Change LED to high luminance version (*TBD)
Installed micro computer (external communication control)
