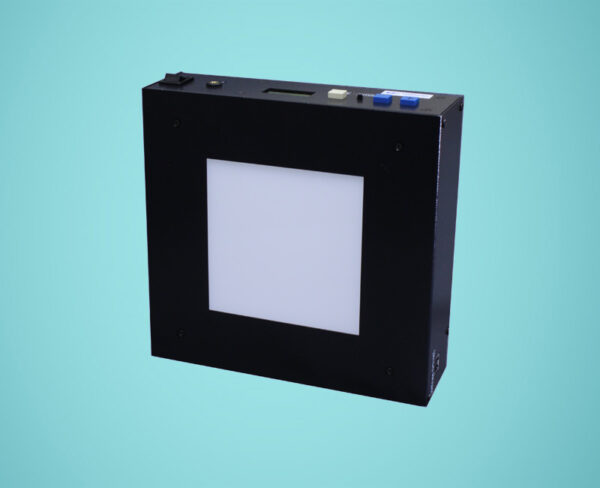

IR Surface Light Source Box–VLB-10FBW-IR8594

This is budget-friendly model.

If you need more functional, higher grade model, jump from the below links.

A4 paper size (200x300mm) NIR light source box– VLB-3020FBW-IR8594

A3 paper size (420x320mm) NIR light source box– VLB-4230FB-IR

Huge surface NIR light source panel– VLB-5050IR-FB940

NIR Illuminations

High intensity equivalent with 100,000lx (same brightness as sunlight)– SOL-900-06IR85/94

Model	VLB-10FBW-IR8594
Intensity range	850nm : 40 - 200 [μW/㎠] 940nm : 30 - 150 [μW/㎠]
Intensity unevenness [± %]	2.5
Light source	LED
Lighting method	DC
Wavelength [nm]	850, 940
function	Change input intensities Fine tune IR intensity Switch IR wavelengths IR intensity feedback function
Display / Operation	The main operation part External communication control (serial)

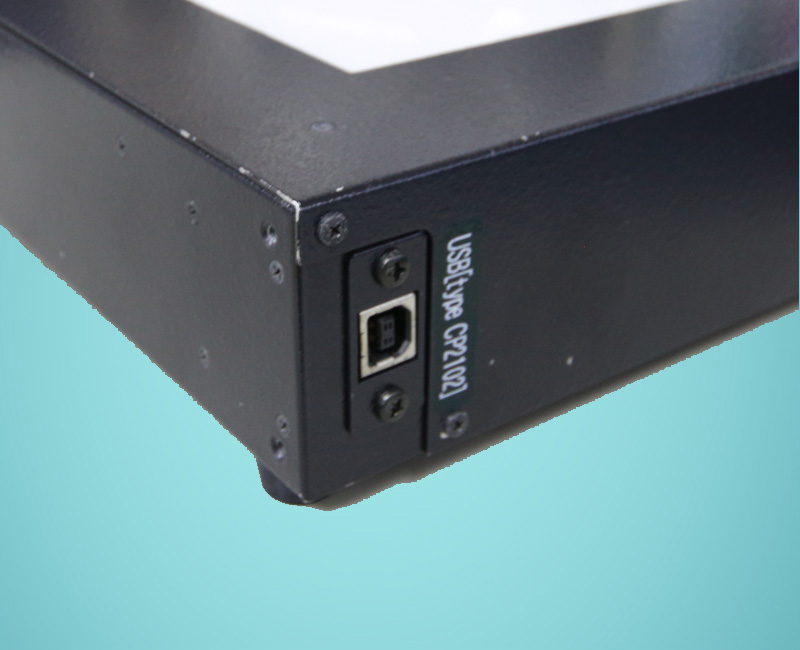

Communication I / F	Connector: USB2.0 Type-B UART by visual COM port with USB port ()
Power-supply voltage	AC100 - 240V 50/60 Hz
Power consumption [VA]	100
Operating environment	Temperature: 15-30[℃] Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm]	186 x 195 x 67
Weight [kg]	540
Extension	Change the size of light surface, IR intensity Change wavelengths (850nm, 940nm,1050nm,1300nm,1550nm) Upgrade maximum IR intensity
