UV Exposure Device– UVL-3

【Using instructions】

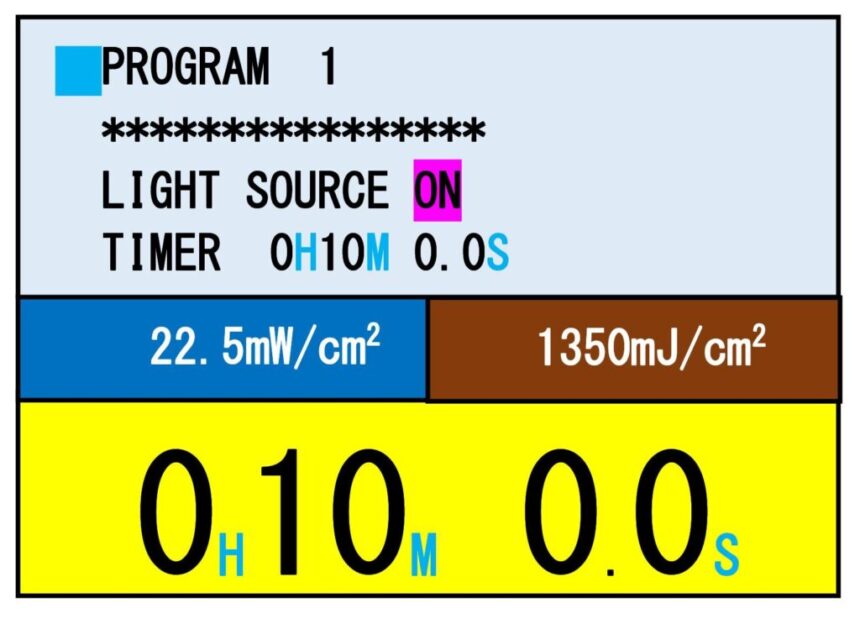

Automatic open/close shutter at time exposure mode

Open/close shutter with looking at exposure amount at manual-operated mode

Model	UVL-3
Light source	Extra-high pressure mercury lamp
Intensity [mW/㎠]	Common use: 20-22 Maximum: 24
Illuminance plane (WxH) [mm]	Irradiance range: φ155mm Active: φ113mm
Illuminance unevenness [± %]	8.0 at an active surface
Display / Operation	The main operation External communication control
Power-supply voltage	AC100V 50/60Hz
Power consumption [VA]	450
Operating environment	Temperature: 5-35 [℃] Humidity: less than 80 [%] without dew condensation
Dimension (WxHxD) [mm]	422.5mm(W)×781mm(H)×357mm(D) excluding protrusions
Weight [kg]	30

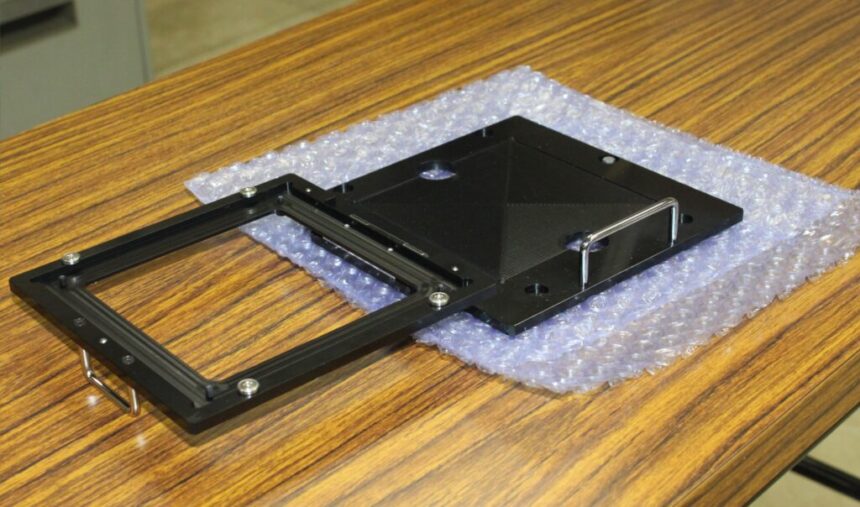

Extension function	【Options】 Change the irradiance (change to less than 20) Respond to an exposure mask (Add a mask holder and a sample trey) 【Customizations】 Change a sample size (also needs to customize for the irradiance range)
