- Change an arbitrary color with RGB LEDs
- Change luminance with keeping a color
- Automatic revision of RGB ratio with individual sensors
- Diffusing surface light source of RGB mono color light

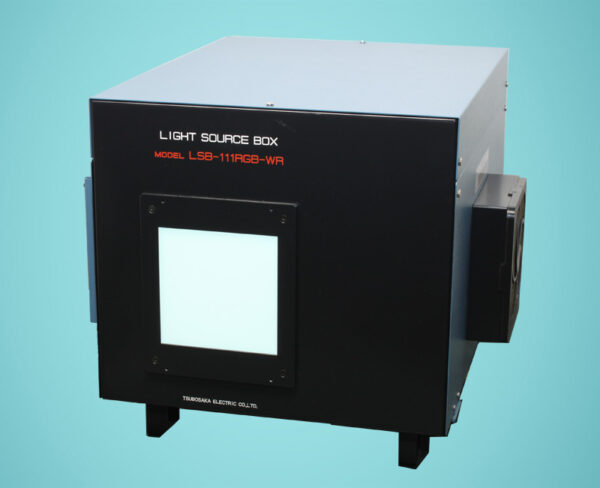

RGB-LED Light Source Box–LSB-111RGB
| Luminance [cd/㎡] | 10-3500 (maximum RGB ratio) |
|---|---|
| Luminance surface (WxH) [mm] | 100x100 |
| Chromaticity unevenness [%] | Less than +/- 5 (at 1000 cd/m^2 and Each spectral intensity of RGB in φ85) |
| Light source | LED |
| Lighting method | PWM 1 [MHz] |
| Wavelength [nm] | Basic peak wavelength R: 632 G: 520 B: 449 |
| function | Fine tune and register each output of RGB Change registered luminance Luminance feedback function |
| Display / Operation | Designated PC software control External communication control (Serial communication) |
| Supported OS | Windows7, 10 |
| Communication I / F | USB2.0 |
| Power-supply voltage | AC100-240[V] 50/60Hz |
| Power consumption [VA] | 220 |
| Dimensions (WxHxD) [mm] | 376x308x380 |
| Weight [kg] | 17 |
| Extension | Extend luminance range of low luminance side (Change from 0.10cd/m^2) |
