- Can switch 4 color temperatures with the switch operation and the external communication
- High uniform luminance with 100×100 luminance surface
- Output a stable luminance with operating luminance feedback function
- Fine tuning of luminance with the keypad or the external communication control

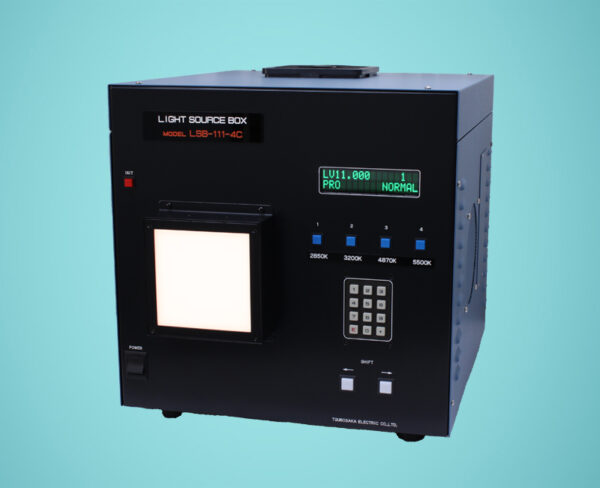

4 Color Temperatures Light Source Box– LSB-111-4C2
| Luminance [LV] | 2850K: 4.0-17.0 3200K: 4.0-16.0 4870K: 4.0-14.5 5500K: 4.0-14.0 |
|---|---|
| Luminance [cd/㎡] | 2850K: 2.5-18300 3200K: 2.5-9150 4870K: 2.5-3200 5500K: 2.5-2250 |
| Luminance surface (WxH) [mm] | 100x100 |
| Active luminance surface (WxH) [mm] | φ100 |
| Light source | Halogen lamp 24V-270W (Infrared cut) |
| Communication I / F | RS-232C |
| Power-supply voltage | AC100-240V, 50/60Hz |
| Power consumption [VA] | 500 |
| Dimensions (WxHxD) [mm] | 400x390x440 |
| Weight [kg] | 21 |
