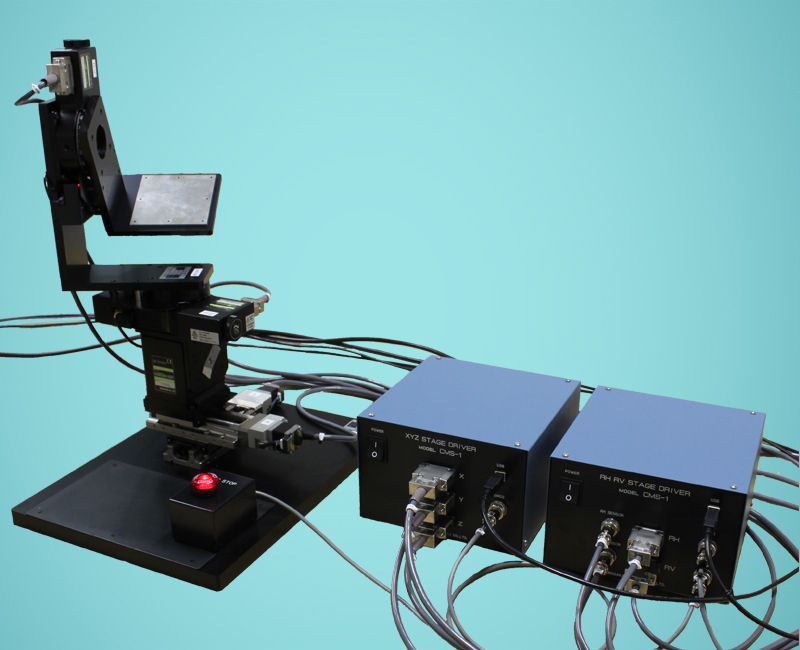

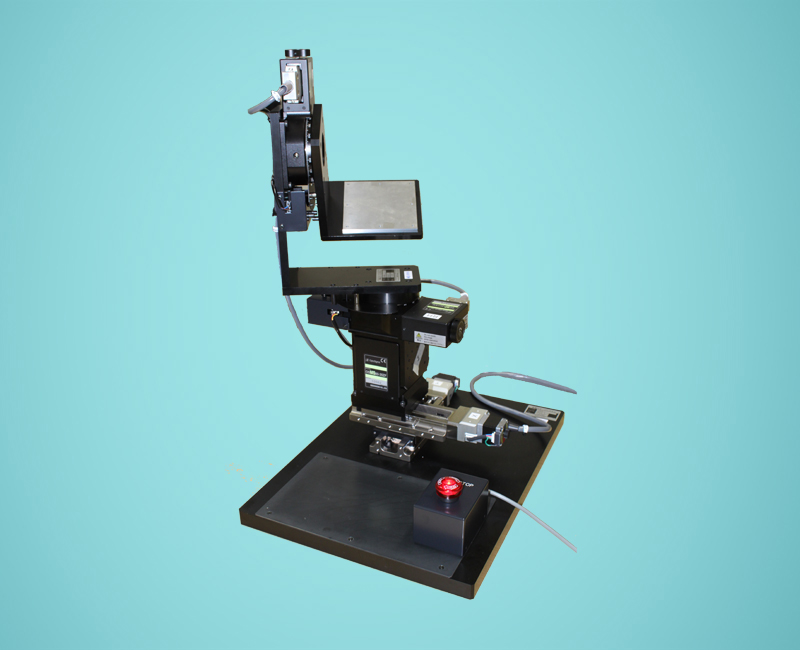

Muliti-axis Electric Stage Control System– CMS-1

  • Equipped electric stages of rotation axis(Yaw/Pitch) and linear axis(X/Y/Z)
  • Control stages with the designated PC software
  • Teach, store and call a position
  • Options: Offer DDL, Change an axis of the electric stage

*In part of specifications, Pitch is described as RV and Yaw as RH.

Bookmark

Model CMS-1
Supported OS Microsoft Windows 10
Movement range [mm] X: ±25[mm], Y: ±25[mm], Z: 10μm
Yaw[RH]: 0.2[deg], Pitch[RV]: 0.2[deg]
Load capacity [kg] 2.0
Communication I / F USB 2.0 Type-B Connector
Power-supply voltage AC100V 50/60[Hz]
Power consumption [VA] 100 (Except for PC)
Operating environment Temperature: 5-40[℃]
Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm] Stage: 300(W) x 400(D) x 550(H)
XYZ Control Box: 200(W) x 200(D) x 145(H)
RH/RV Control Box: 200(W) x 200(D) x 145(H)
Weight [kg] Stage: 16.0
XYZ Control Box: 3.0
RH/RV Control Box: 2.9
Accessories Emergency Button
Extension Offer DDL file, Change the stage specifications
