- Standard white board painted with high reflective white silicon

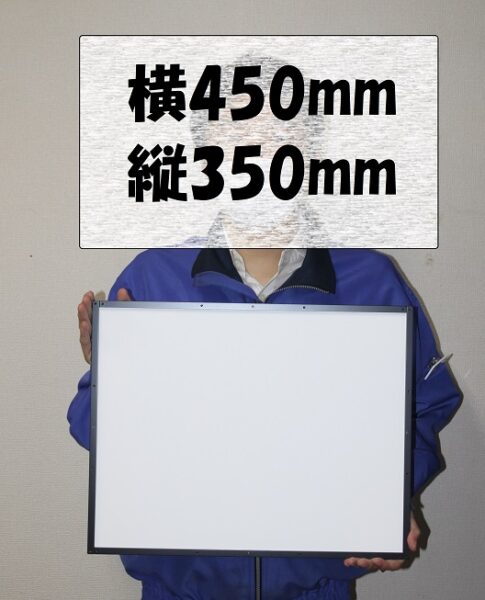

- Active white surface: length 350mm, width 450mm
- Used for calibration of 2 dimensional luminance meter
- Suitable for an inspection of LED irradiating features
- Can be also used for temperature test

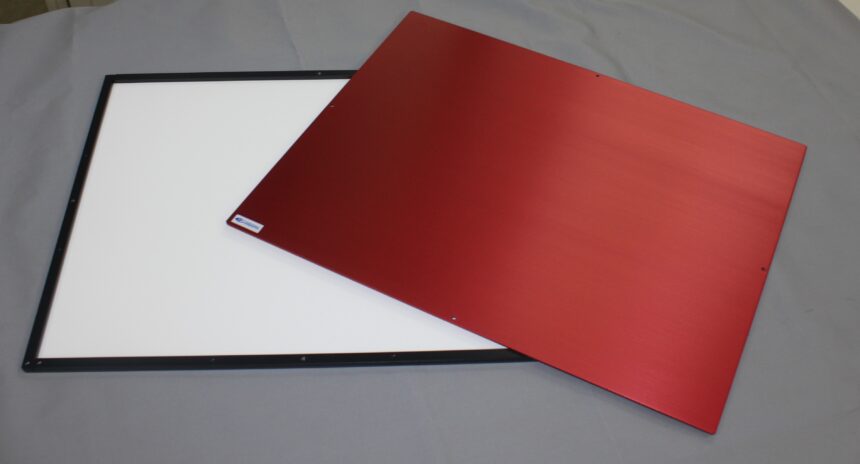

- Attached the cover to protect the white surface

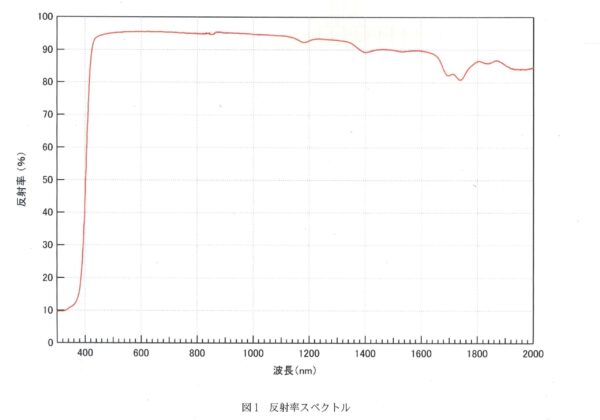

- Attached the spectral reflectance data
Silicon Paint Standard White Board– SSWP-4535-01
| Model | SSWP-4535-01 |
|---|---|
| Operating environment | Temperature: -40-140[℃] |
| Dimension (WxHxD) [mm] | External dimensions: 470x370x9 Effective white surface: 450x350 |
| Weight [kg] | White board: 1.2 Protection cover: 1.0 |
| Accessories | Spectral reflectance data |
