- Input and invoke an arbitrary luminance
- Non-flicker for DC lighting
- External communication control
- Less space to place for thin and light body

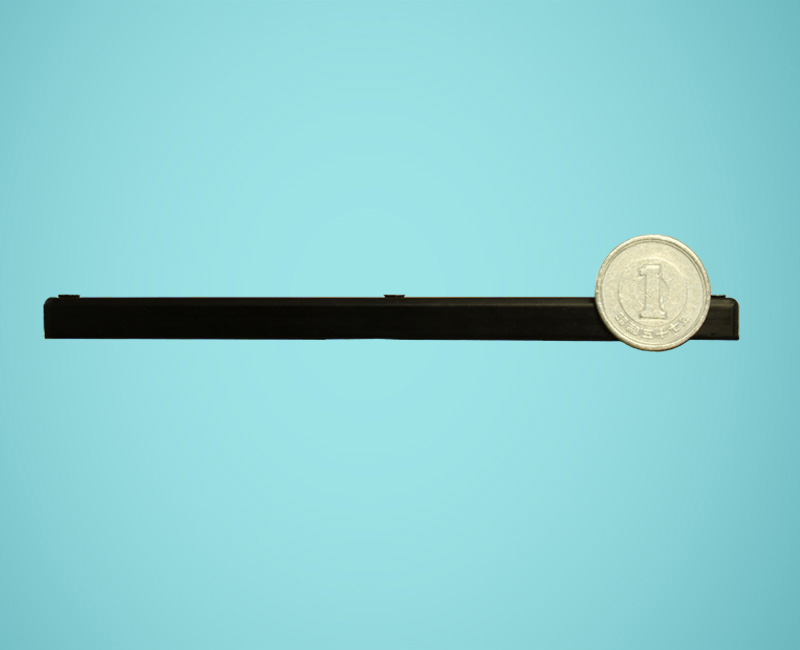

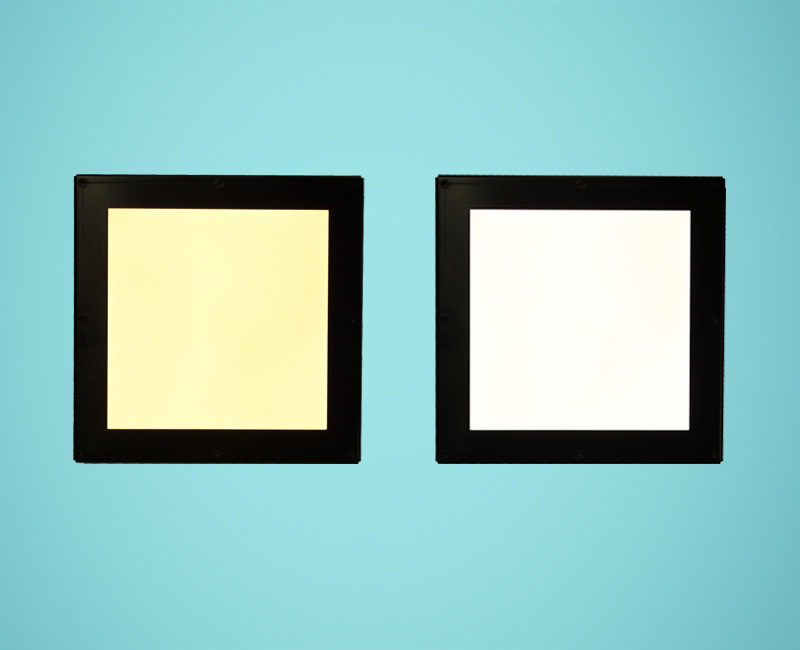

Super Thin LGP(LED Light Guide Plate)– VLB-9LGP-CRI
| Model | VLB-9LGP-CRI |
|---|---|
| Luminance [cd/㎡] | One color: 500-6000 Mixed colors: 1000-8000 |
| Luminance surface (WxH) [mm] | 90 × 90 |
| Active luminance surface (WxH) [mm] | 80 × 80 |
| Correlated color temperature [K] | 2900±100 - 5500±500 |
| Light source | High color rendering white LED |
| Lighting method | DC |
| function | Lights off function External communication control Input and invoke an arbitrary luminance |
| Power-supply voltage | AC100 - 240[V] 50/60[Hz] |
| Power consumption [VA] | 24 |
| Operating environment | Temperature: 5-40[℃] Humidity: Less than 90% without dew condensation |

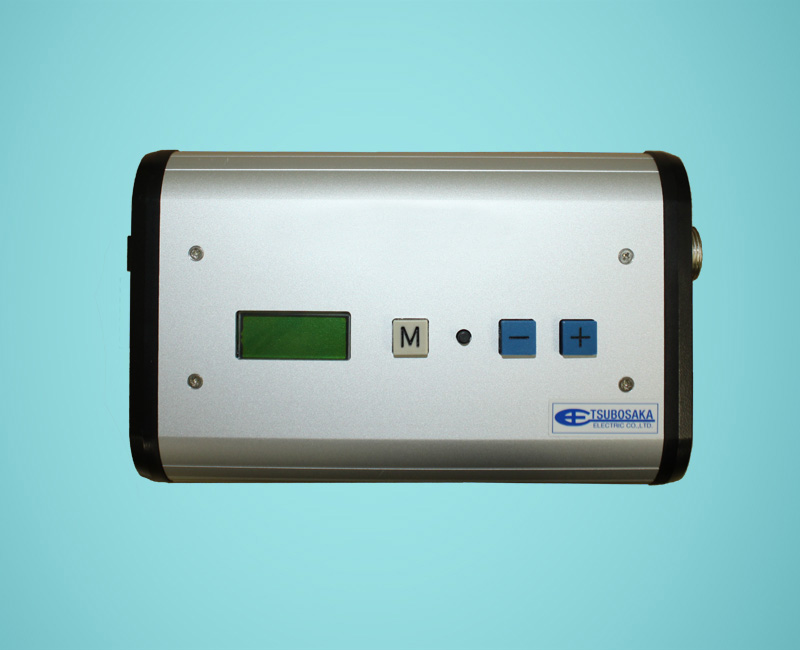

| Dimensions (WxHxD) [mm] | Light source unit: 118.5 x 118.5 x 7 Operation unit: 150 x 95 x 40 |
| Weight [g] | Light source unit: 200 Operation unit: 350(except AC adapter) |
| Extension | Unattached micro-computer Budget model Expansion of light surface (neg) |
