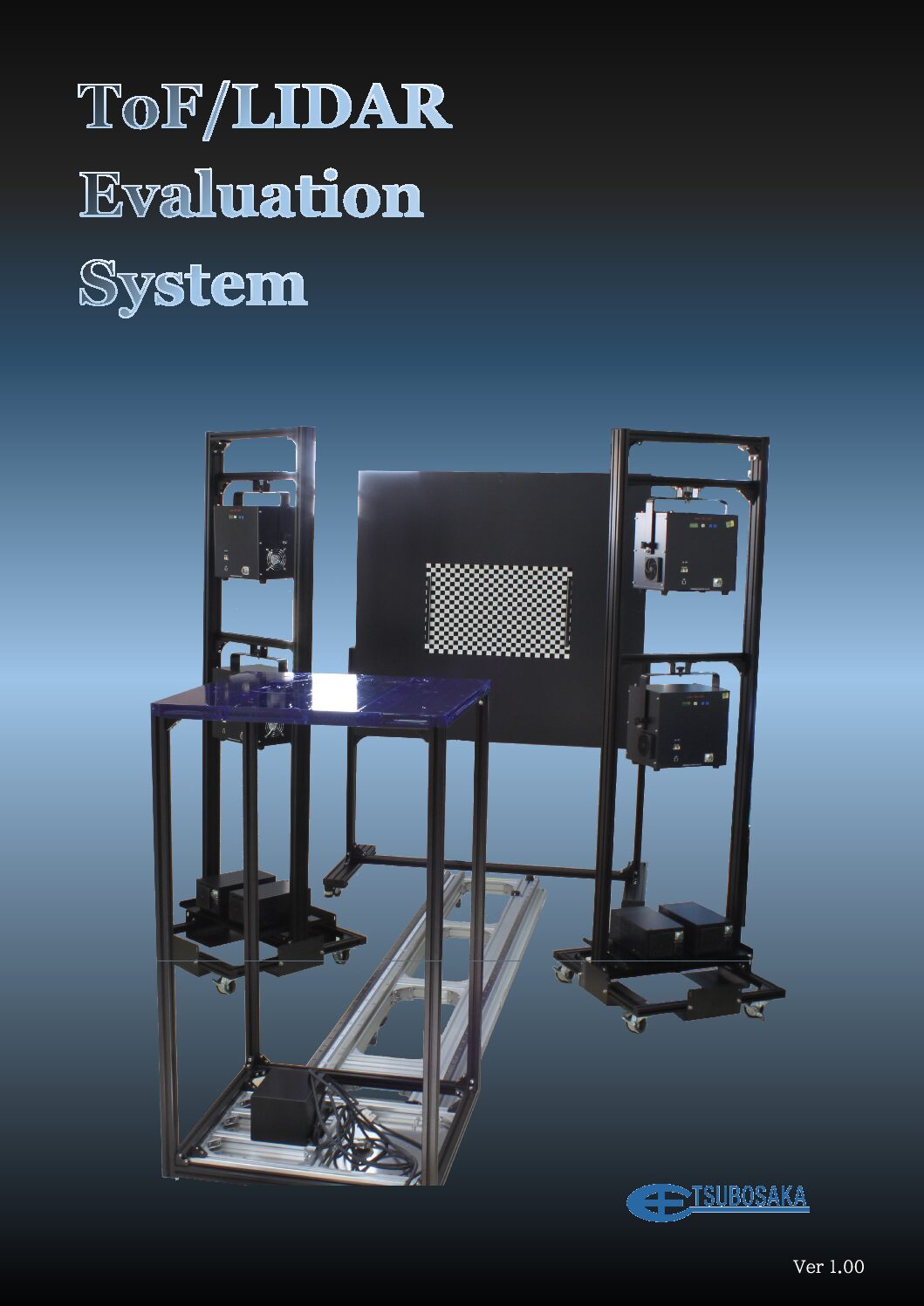

ToF/LiDAR Evaluation System

Catalog Download

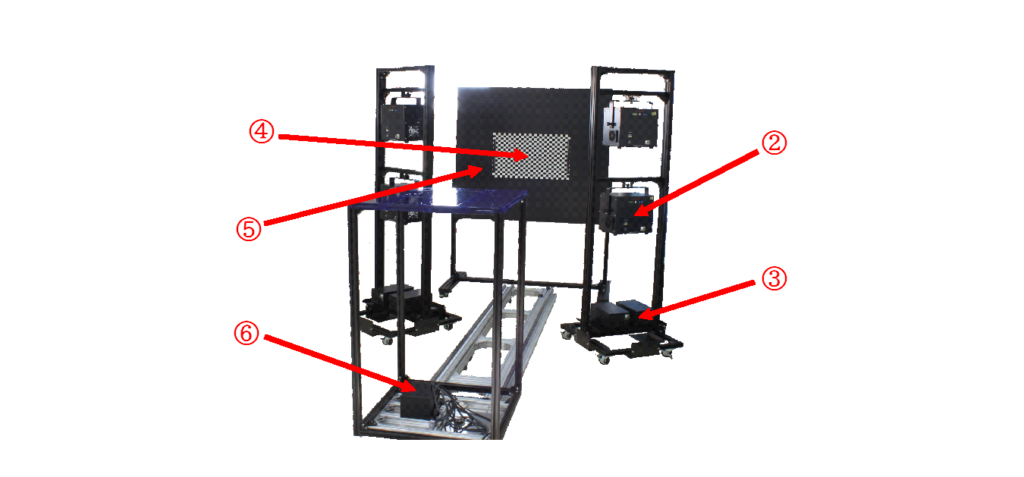

No. Compositions Contents
Darkroom Using a special dark curtain without diffusing IR (no image)
NIR  illumination

SOL-900-04IR8594

(850nm, 940nm)

NIR irradiating illumination on the assumption of ambient light

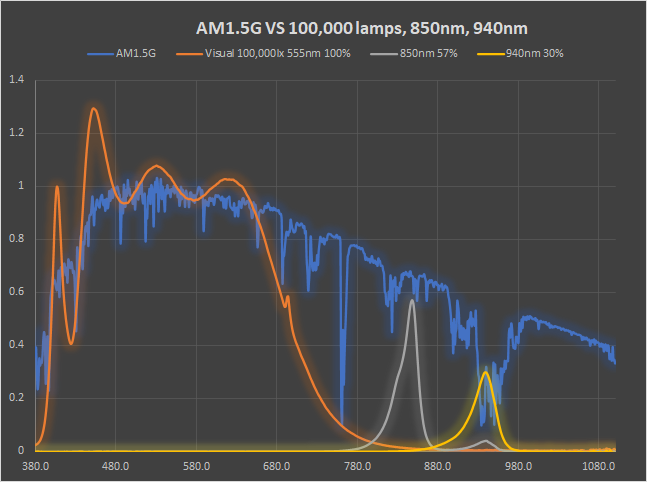

Irradiation intensity of each wavelength is equivalent to AM1.5G

Light stands  light stands with fall prevention mechanism
Reflective chart (A4, A3, 300, 500, 600, 1000 size)

Reflection rate 5%, 20%, 50%, 80%/ Checkered pattern

A chart of an image is A3 size

Please consult us about which pattern is preferable.

Chart stand The stand of fixing a reflective chart
Measured object stand

Electric-powered slide rail (active range: 4-10m)

It makes much easier to move the measured object at the distance to a chart while an evaluation.

The range (length) of the rail can be change as requirements to either longer or shorter.



NIR illumination which is used for this is SOL-900-06IR85/94

Its intensity is high enough to irradiate a reflective chart to test ToF / LiDAR sensors.

Wavelength can be combined from two types for instance 850nm and 940nm.

Would you like to have higher intensity models ? Jump to this page; 2SICS-1000, SOL-6000
