- Reproduce Ghost/Flare phenomenon for lens evaluations
- Irradiated from multiple angles for automatic continuously saving of images to PC file
- Electric powered moving from the directly above to over the horizon
- Switch irradiating angles with electric powered rotations of a lens
- Extract and evaluate ghost phenomenon and flare phenomenon from RGB data of an image (Option)

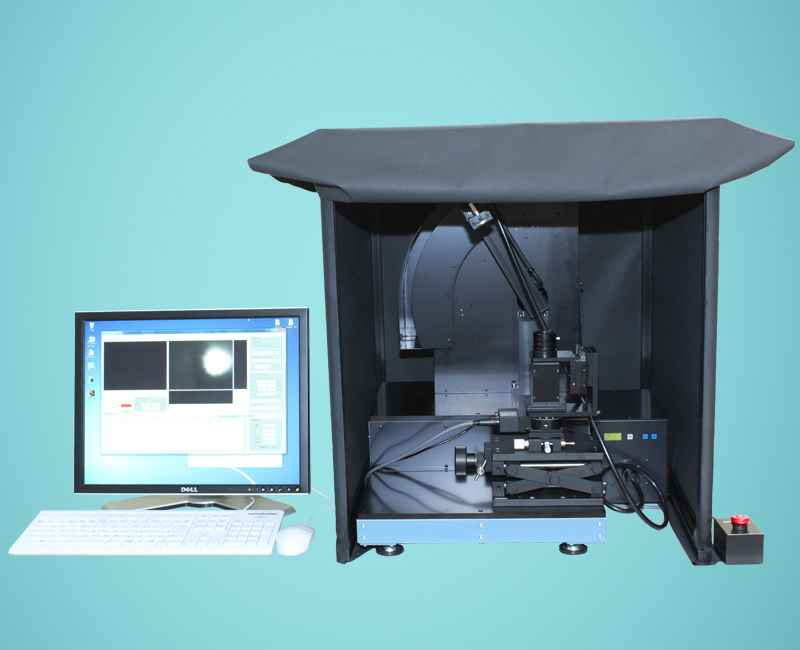

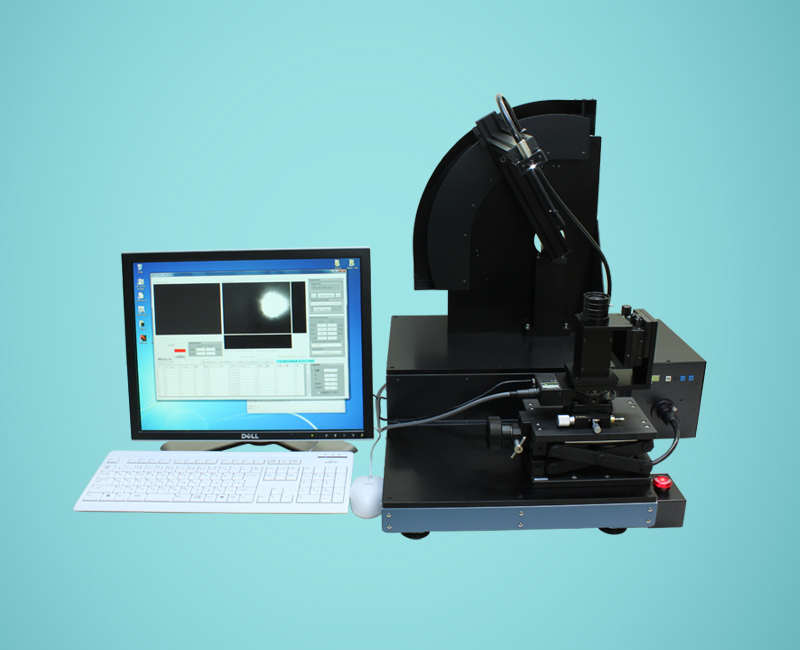

Ghost/Flare Phenomenon Evaluation System–GCS-2T
| Model | GCS-2T |
|---|---|
| Light source | LED |
| Illuminance [lx] | More than 200 |
| Function | Light source transference (electric powered motor operation) 0-90 degree (resolution 0.1degree) Rotations of a subject lens (electric powered motor operation) 0-360 degree (resolution 0.1degree) |
| Sensor | CMOS sensor color camera module |
| Pinhole | φ1.85mm *Can be detached |
| Object to inspect | Various lenses, lens units |
| Display / Operation | Designated PC software operation |
| Supported OS | Windows 7/8/10 |
| Power-supply voltage | AC100-240V 50/60Hz |
| Power consumption [VA] | Measuring unit: 120 Light source unit: 100 |
| Dimension (WxHxD) [mm] | Measuring unit: 510x720x410 Light source unit: 145x170x245 |
| Weight [kg] | Measuring unit: 30 Light source unit: 6 |
| Extension function | NIR light source (910nm, 940nm, 1050nm etc.) |
