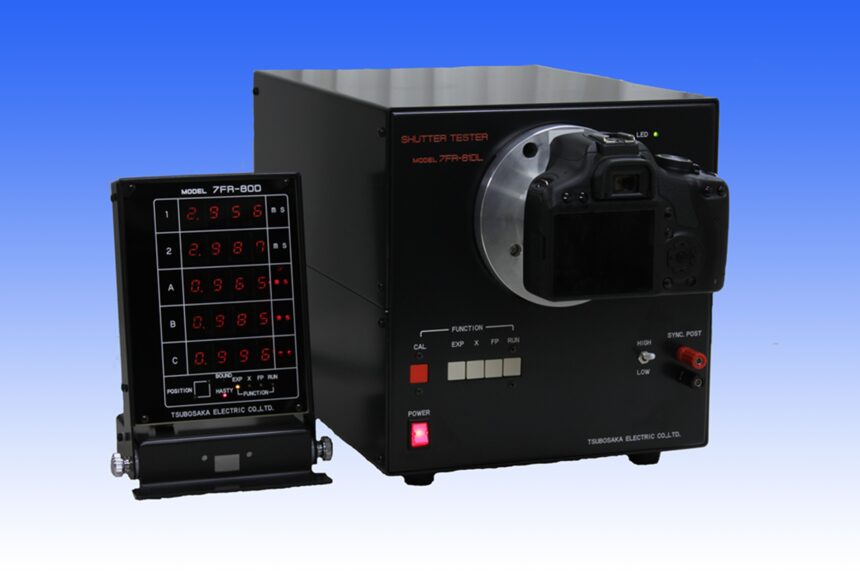

Shutter tester–7FR-80D (Reflective type)

High performance reflective shutter tester
Measure exposure time, curtain speed, exposure unevenness and X delay(and so on) of focal plane shutters with 3 points
Laser beam reflection can make this device measure with a finished digital cameras
Measure differences of the start time between top, middle and bottom
Accurate measurement of the shutter speed up to 1/8000 sec.
Allow settings, control and data acquisition from PC

Model	7FR-80D
Light source	Laser light λ=780nm Power:1mW ( class Ⅱ)
Function	Bound detect function Hasty detect function
Setting range	Crystal accuracy : within +/- 0.05 [%] Measurement accuracy : less than +/- 5 [μs]
Object to inspect	Focal plane shutter Shutter unit Finished digital camera

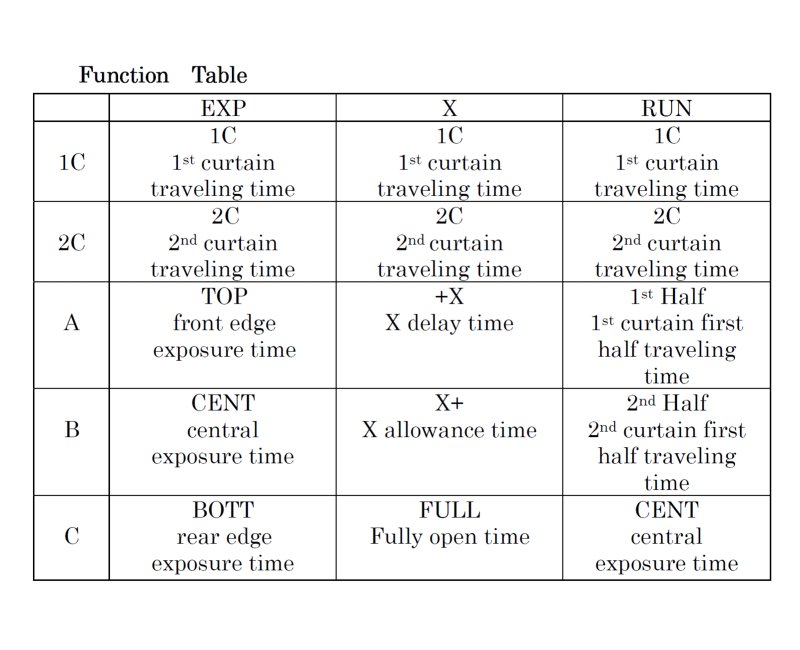

Measurement item	Please see the item description
Measurement range	Measurement range : 0.001ms - 16.0s Measurement time : 0.001ms - 16.0 s
Measurement method	Reflection method
Display / Operation	Main unit : 5ch (7 segments) External (serial) communication control
Measurement points	3 vertical points
Judgment function	Exposure unevenness OK / NG
Communication I / F	RS-232C compliant
Power-supply voltage	AC100 - 120V, 200 - 240V 50/60Hz
Power consumption [VA]	14.5
Operating environment	Temperature : 5 - 40 [℃] Humidity : less than 85 [%] without dew condensation
Dimension (WxHxD) [mm]	160×410×462
Weight [kg]	10
Extension function	Increase the number of measurement points LED light source
