- Chart Collimator for adjustment and inspection of digital camera and video camera
- Use for the resolution evaluation of a zoom lens
- Specifications can be changed for user’s lens from finite distance to infinite distance
- Light source can be selected from Halogen or LED
- Standard model is f=500, it can be customized with user’s camera

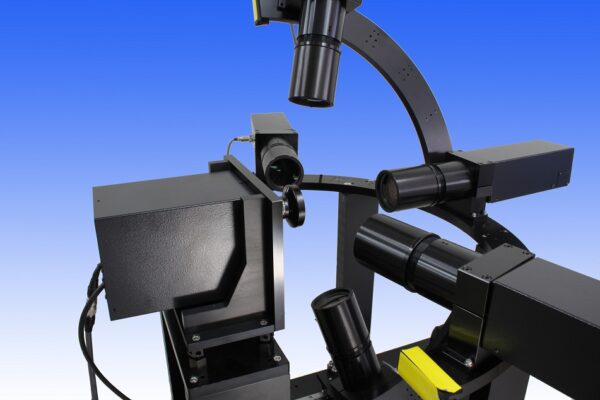

- Combining multiple devices makes it possible to inspect center+ peripheral angle of view

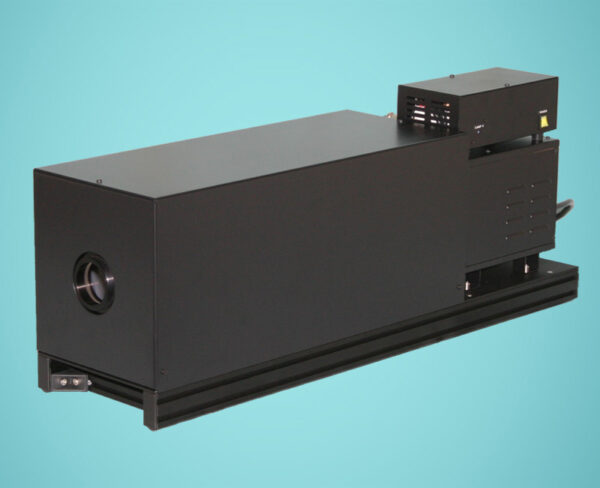

Chart Collimator– AFC series
| Model | AFC-500 |
|---|---|
| Luminance [cd/㎡] | 300-900 |
| Luminance surface (WxH) [mm] | 150x120 |
| Correlated color temperature [K] | 6500+/-500 |
| Light source | LED *Can change to Halogen by the option |
| Collimator optical system | Collimator lens φ50mm, f=500mm |
| Object to inspect | Camera lens and so on |
| Chart | 90x120mm |
| Power-supply voltage | AC100-240V, 50/60Hz |
| Power consumption [VA] | 10 |
| Dimensions (WxHxD) [mm] | 200x260x750 |
| Weight [kg] | 11 |
| Extension | Focal position can change to finite position Variable mechanism of focal position (Motorized chart part) Change light source All customs to fit chart size |
