Spectral reproduction light source box

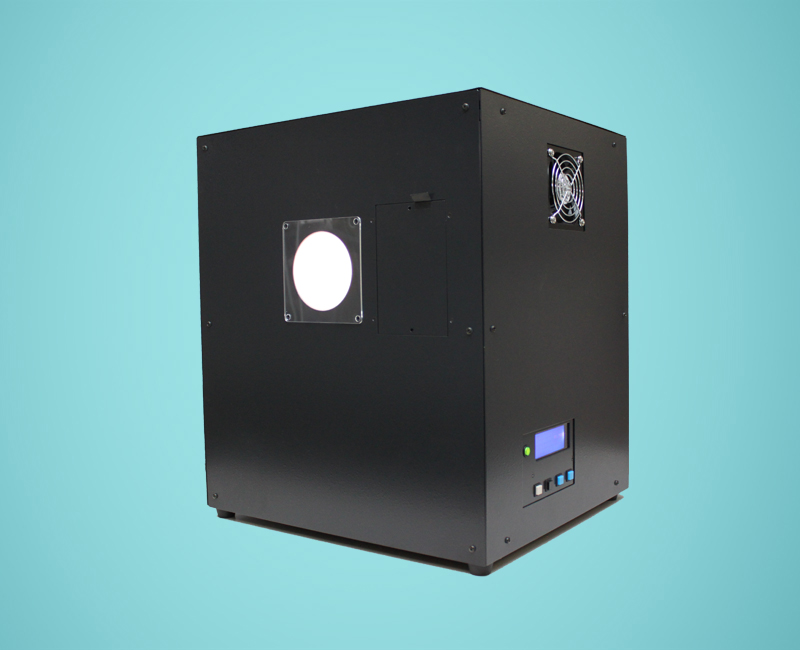

Spectral reproduction light source box– LSBS-300SRV-1

4 different color temperatures white LED and 26 kinds of single-wavelength LED bulbs are equipped with this light source box.

This can reproduce a spectrum based on CSV data.

Model	LSBS-300SRV-1
Luminance surface (WxH) [mm]	φ80
Light source	LED
Lighting method	DC lighting
Wavelength [nm]	360-760 Preset the below spectral data ➀CIE Standard A light ②CIE D65 light ③AM1.5G

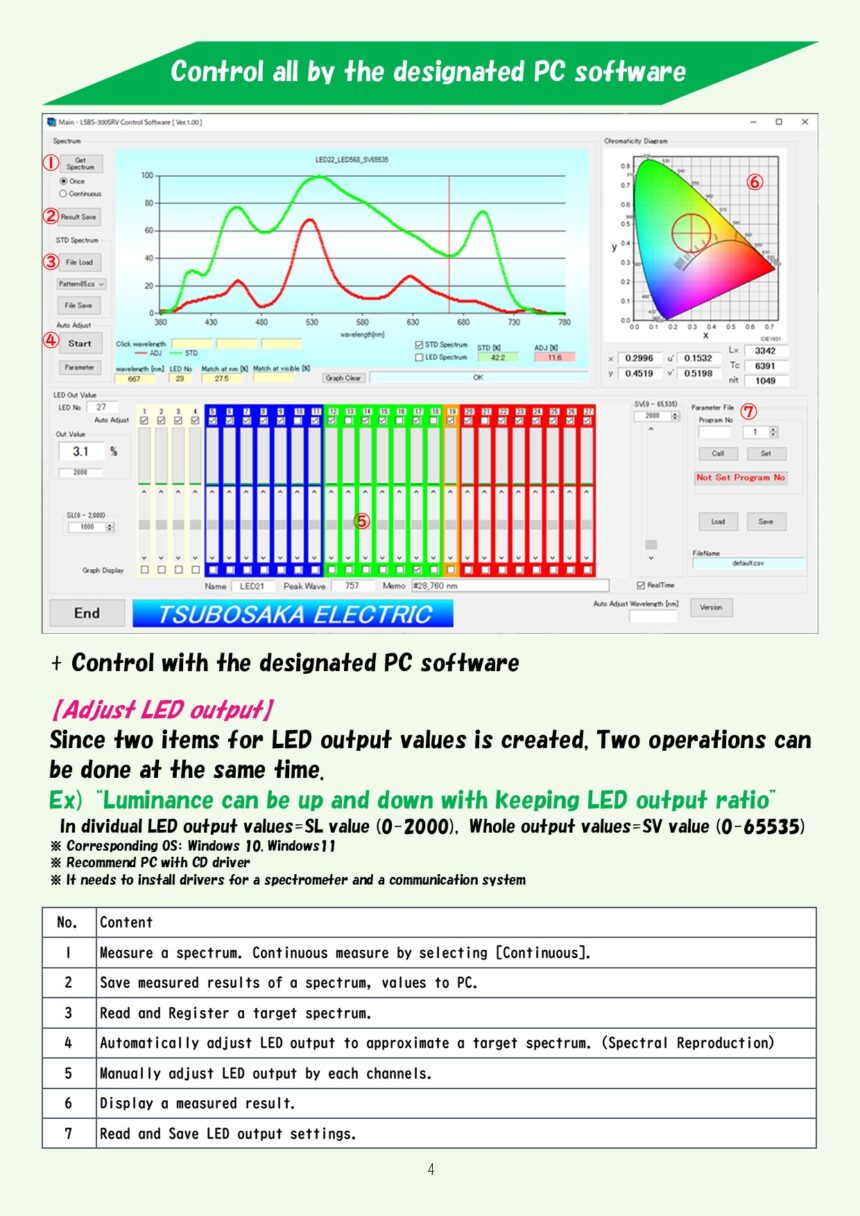

function	Change and register radiant energies of spectral wavelengths Reproduce a spectral data based on CSV data Adjust and register output values of each LED External communication control
Setting range	Stability of illumination: ±2
Setting range	300
Sensor	IM-1000R by Topcon corporation Measuring range: 360-760 Resolution: 1nm
Measurement item	Luminance [cd/㎡] Luminance [nit] Illuminance [lux] Color temperature [K] Chromaticity [x, y] Chromaticity [u', v']
Supported OS	Windows 10, 11
Communication I / F	Connector: USB2.0 Type-B Virtual COM port
Power consumption [VA]	400
Operating environment	Temperature: 10-40℃ Humidity: less than 80% without dew condensation
Dimensions (WxHxD) [mm]	405x465x355
Weight [kg]	20
