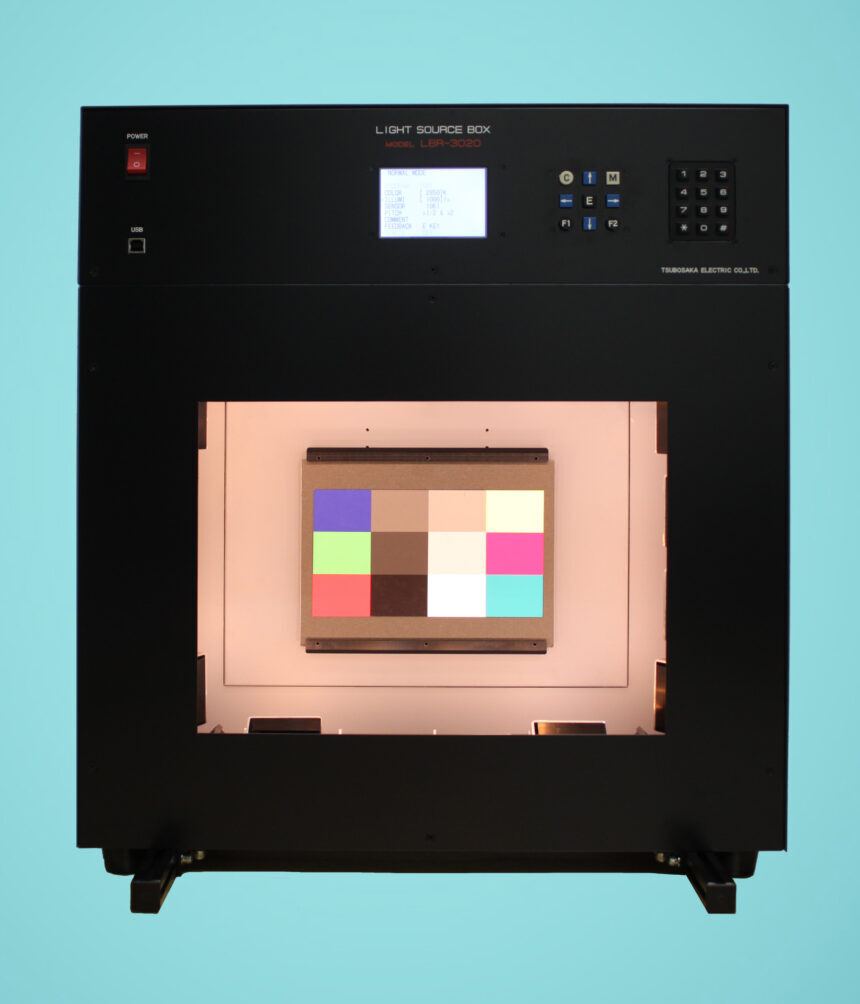

Reflective Chart Light Source Box–LBR-3020WCRI

Catalog Download

  • Irradiating light source box for the reflective chart
  • High color rendering LED
  • Can set an arbitrary illuminance (Easy to set it with the keypad)
  • Can reproduce an arbitrary correlated color temperature (Easy to set with the keypad)
  • Color viewing box, also use it for the visual inspection



Bookmark

Model LBR-3020WCRI
Correlated color temperature [K] 2850 - 6500
Light source LED
Lighting method DC
Illuminance [lx] 500 - 5000
Illuminance plane (WxH) [mm] 230 x 317
Illuminance unevenness [± %] 5
function Change registered illuminance
Adjust illuminance function
Display sampling illuminance
External pulse flicker function (1-1000[Hz]/Setting limit 3000[Hz])
LED OFF function
LED adjust function
ON/OFF LCD backlight
Lock function of operation buttons (Remote function)
