Artificial sunlight illumination– SOL-600-01T05

Catalog Download

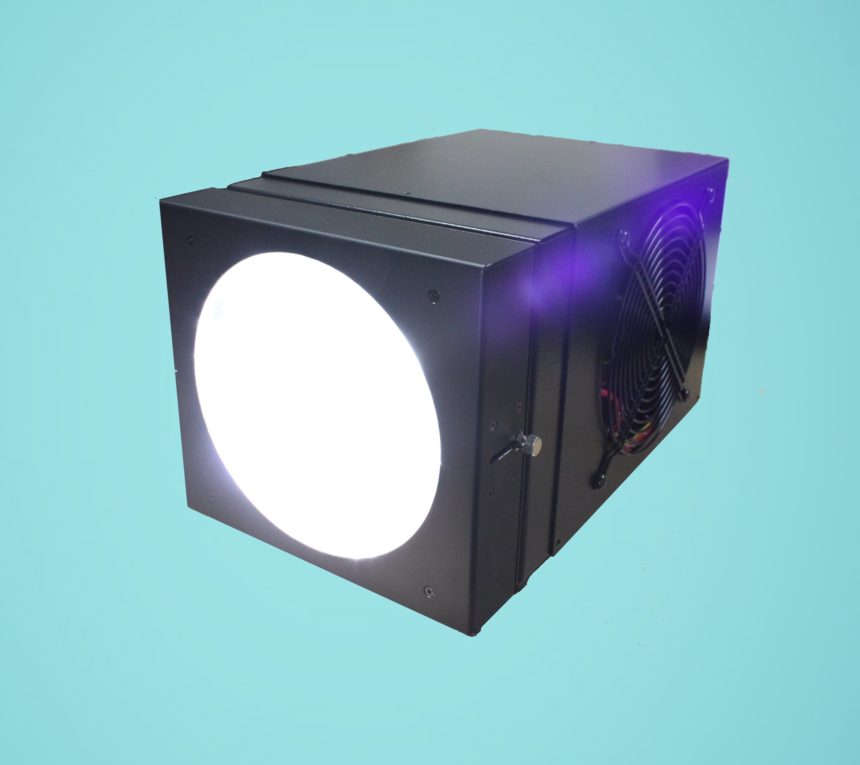

Artificial sunlight illumination which is called “eclat”.

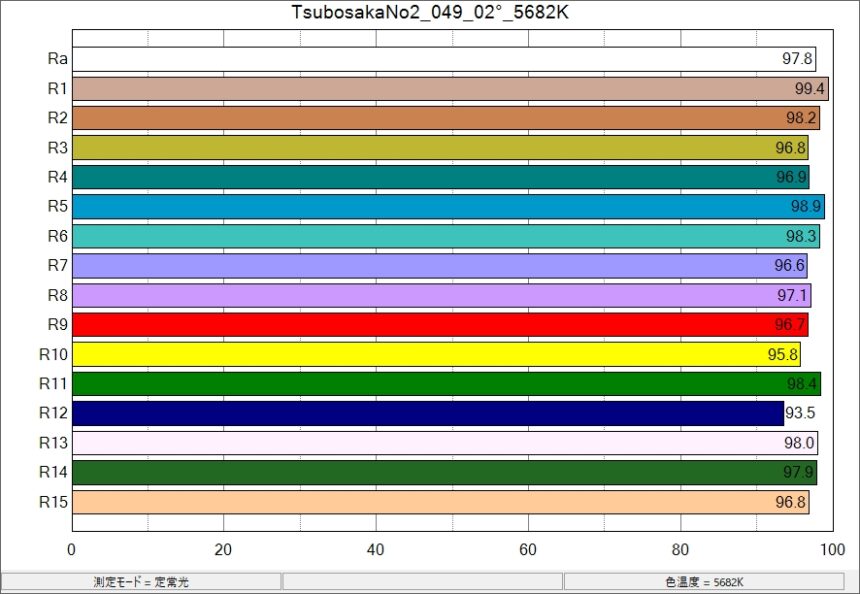

  • High color reproductivity is equivalent to sunlight
  • High illuminance same as Xenon
  • Low power consumption and Long life span
  • Flicker lighting function
  • Small body without heat
  • Use the external control with PC
  • Quick turn ON/OFF the light
  • Can change a color temperature from 5500K to 6500K
  • Attached tripods dolly
  • Best for fields evaluations and reproduce an outside environment

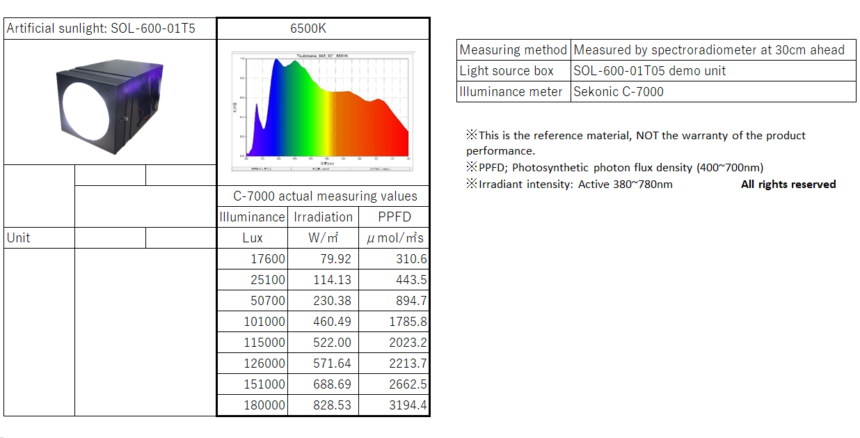

  • More than 100,000lx, PPFD more than 2000μmol/㎡, Irradiating illuminance500W/㎡ at 30cm ahead



Bookmark

Model SOL-600-01T05
Correlated color temperature [K] 5500+/-500
Light source LED
Lighting method DC
Total luminous flux [lm] 5200
Illuminance [lx] 23000-26000 (1 meter ahead)
function Adjust illuminance function
Change registered illuminance
Pulse lighting

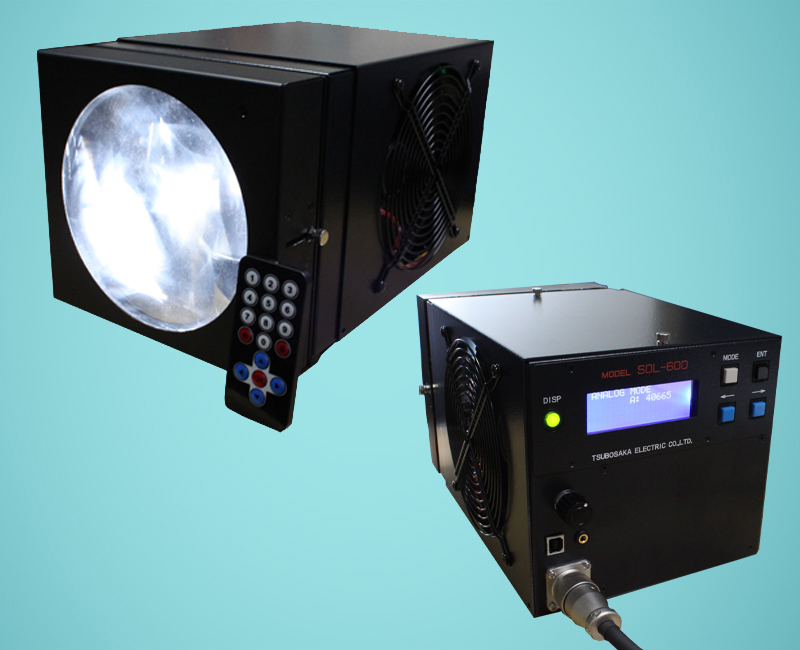

Wireless remote control
ON/OFF display backlight
Attached screw holes for tripod dolly (1/4-20UNC)
Setting range Frequency : 10-300 [Hz]
Duty : 0-100
Display / Operation Operating illumination part
External communication control (serial communication)
Wireless remote control
Communication I / F USB 2.0 compliant
Power-supply voltage AC100-240[V] 50/60[Hz]
Power consumption [VA] Less than 200
Operating environment Temperature: 15-30[℃]
Humidity: less than 80 [%] without dew condensation
Dimensions (WxHxD) [mm] Lighting unit: 191x172x312
Power supply unit: 140x110x190
Weight [kg] Lighting unit : 4
Power supply unit: 1.7
Accessories Connection cable: 2 [m]
